Parker 371LT Hydraulic Hose
Product

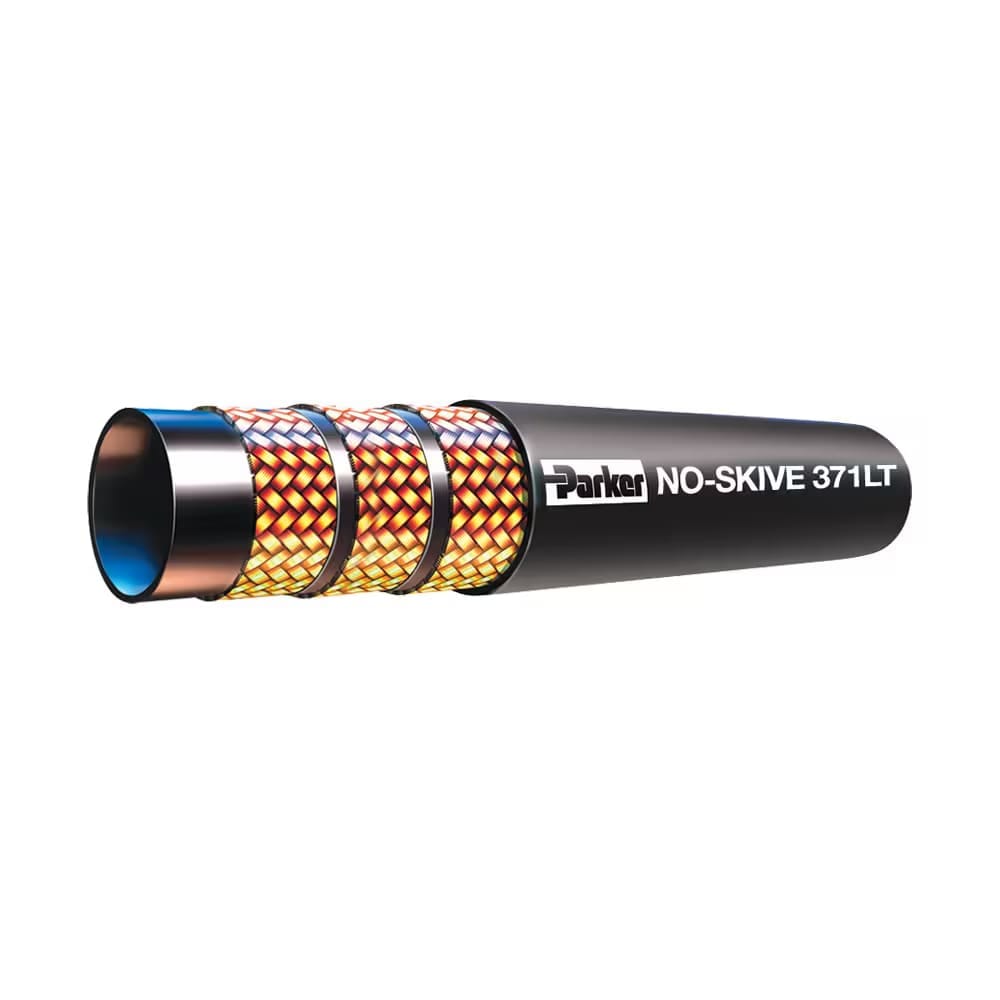

371LT – No-Skive compact hose
Tube: synthetic rubber.
Tube: synthetic rubber.
Construction
Reinforcement: three high tensile steel wire braids.
Cover: synthetic rubber.
Cover: synthetic rubber.
Recommended fluids
Petroleum and water-glycol based fluids, lubricating oils, air and water. For air above 1.7 MPa the hose cover must be pinpricked.
Operating temperature
-50°C to +100°C (Air max. +70°C, Water max. +85°C).
Burst pressure
Operating pressure x 4.
Applicable specifications
Parker specifications.
Fitting series
70
Applications
Mobile applications in low temperature environments: forestry machines, refrigerated warehouses.
Advantages
Compact design compared with a 4 spiral hose.
Benefits
For very low temperature applications.
| Part number | Hose Inside Diameter DN | Hose Inside Diameter inch | Hose Inside Diameter Size | Hose Inside Diameter mm | Outside Diameter mm | Operating Pressure psi | Operating Pressure Mpa | Bend radius mm |
| 371LT-6 | 10 | 3/8 | -06 | 9.5 | 21.4 | 6500 | 44.5 | 120 |
| 371LT-8 | 12 | 1/2 | -08 | 12.7 | 24.6 | 6000 | 41.5 | 160 |
| 371LT-10 | 16 | 5/8 | -10 | 15.9 | 28.2 | 5000 | 35.0 | 210 |
| 371LT-12 | 20 | 3/4 | -12 | 19.1 | 32.2 | 5000 | 35.0 | 260 |
| 371LT-16 | 25 | 1 | -16 | 25.4 | 39.7 | 4000 | 28.0 | 310 |
