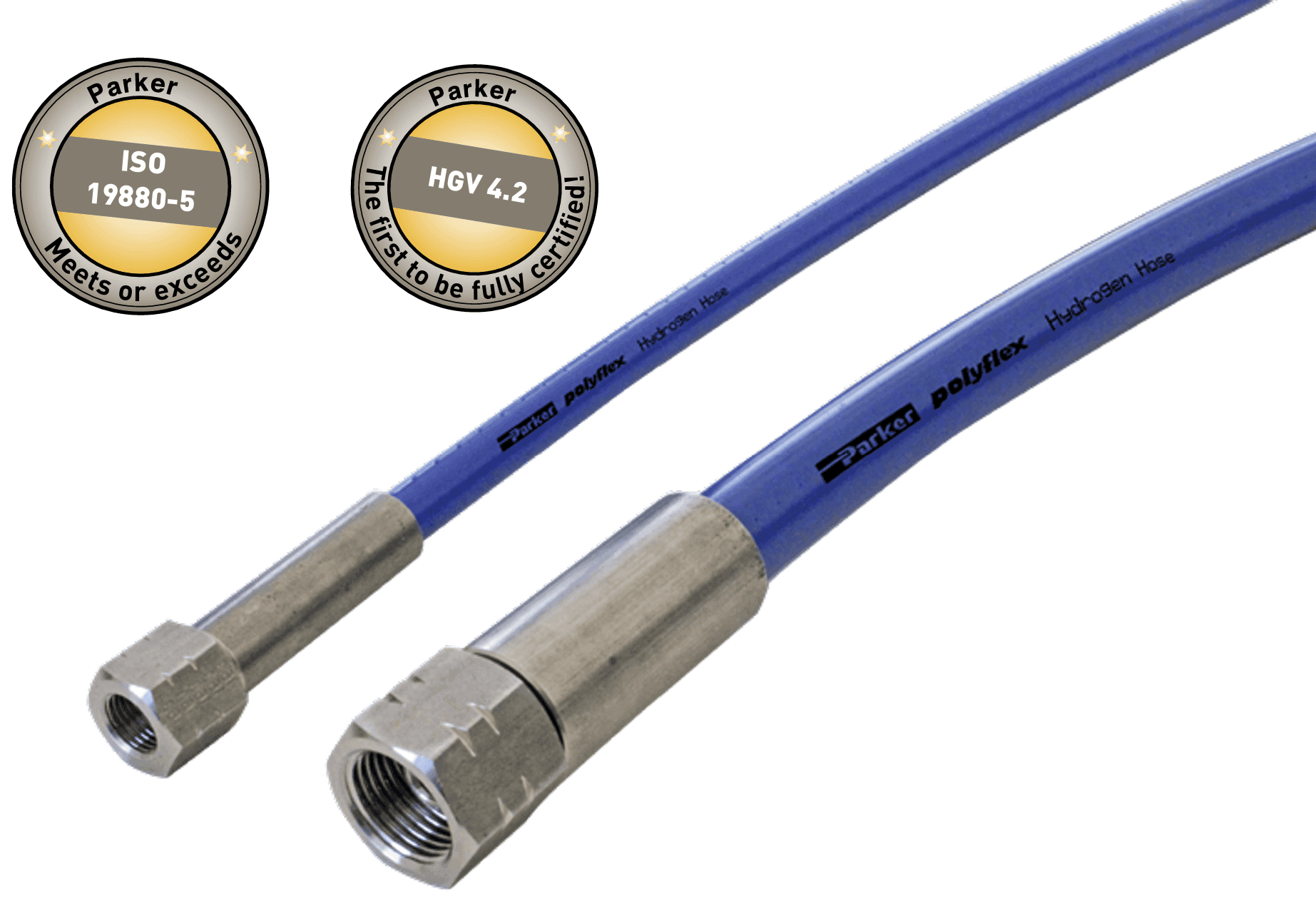

Parker High-Pressure Hydrogen Hose Assemblies

High-Performance Hydrogen Transfer Hoses Certified to ISO 19880-5 & ANSI/CSA HGV 4.2

Designed for leak-tight reliability and extreme conditions, Parker’s high-pressure hydrogen hose assemblies support refueling and transfer applications up to 103.5 MPa (H70). Engineered for hydrogen dispensing systems, these hoses are trusted for their safety, durability, and performance in line with international standards.

Key Features & Benefits

• Leak-tight design: Perfect fit of hose and fittings ensures secure connection, even at temperatures down to -40°C.
• Certified safety: Meets or exceeds ISO 19880-5 and ANSI/CSA HGV 4.2; -4 hose size is third-party certified.
• Durability: Extended service life reduces downtime and replacement costs.
• Compact flexibility: Tight bend radius for easy routing in confined spaces.
• Kink resistance: Enhanced resistance to end-user damage during handling.
• Fast refuelling: Optimised for low hydrogen refueling time at -40°C.
• Low permeation: Reduces hydrogen loss and gas concentration risks.
• Pressure spike protection: Handles pressure spikes up to 103.5 MPa, ensuring performance in the most demanding refueling environments.

Construction

• Core Tube: High-performance polymer
• Reinforcement: Steel wire
• Cover: Polyamide (pinpricked)
• Temperature Range: -40 °C to +85 °C (-40 °F to +185 °F)
• Pressure Class: H70

Factory-Tested Assemblies Only

Each hose is manufactured and pressure tested in a controlled facility for consistent quality.

Available Configurations:

• Hose Size -4: M Type Female 9/16-18 UNF
• Hose Size -8: M Type Female 1-12 UNF
• Additional end connections available on request
