Parker 701 Hydraulic Hose
Product

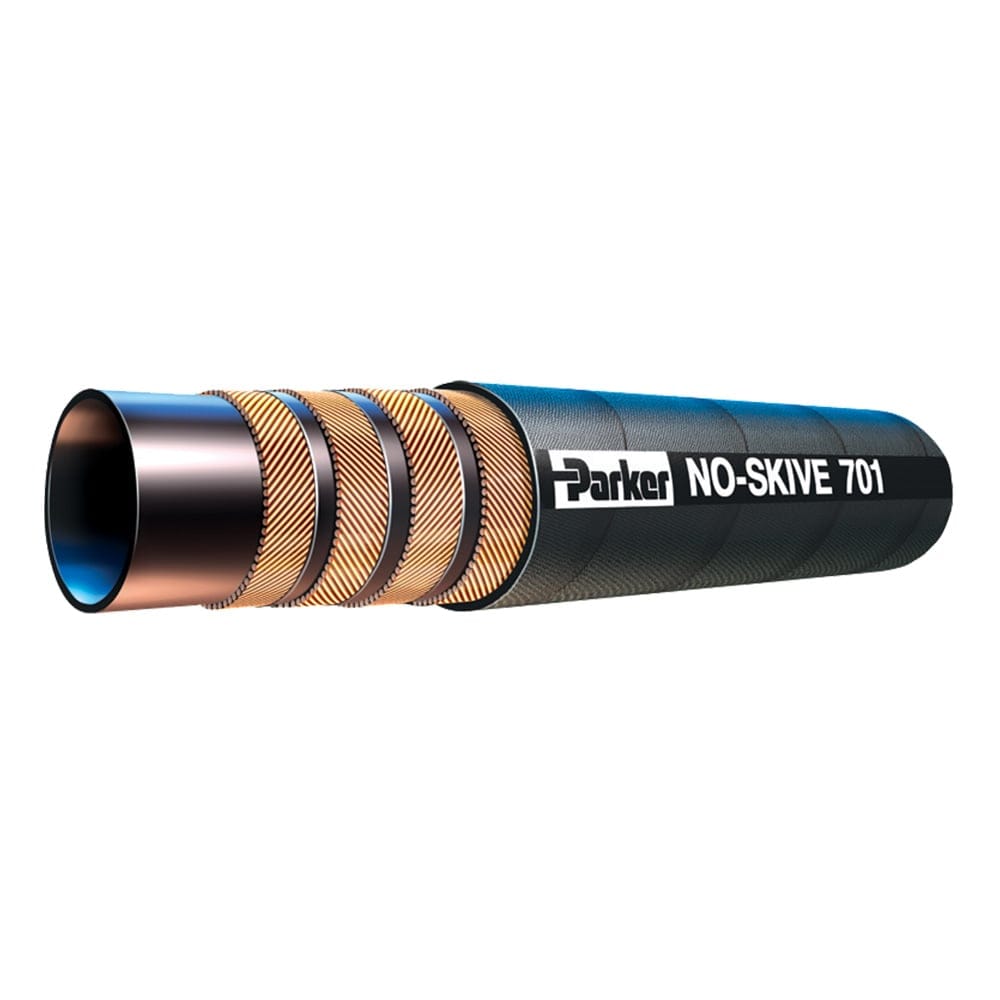

701 – No-Skive multispiral hose
Tube: synthetic rubber.
Tube: synthetic rubber.
Construction
Reinforcement: four spirals of high-tensile steel wire.
Cover: synthetic rubber.
Cover: synthetic rubber.
Recommended fluids
-
Operating temperature
-40°C to +100°C (Air max. +70°C, Water max. +85°C).
Burst pressure
Operating pressure x 4.
Applicable specifications
ISO 3862-1 type 4SP, EN 856 type 4SP.
Fitting series
70
Applications
General high pressure hydraulic applications.
Advantages
No-Skive hose construction, reinforcement of four high tensile steel wires.
Benefits
Provides a secure and safe hose assembly operation because no skiving required.
| Part number | Hose Inside Diameter DN | Hose Inside Diameter inch | Hose Inside Diameter Size | Hose Inside Diameter mm | Outside Diameter mm | Operating Pressure psi | Operating Pressure Mpa | Bend radius mm |
| 701-6 | 10 | 3/8 | -06 | 9.5 | 21.4 | 6500 | 45.0 | 180 |
| 701-8 | 12 | 1/2 | -08 | 12.7 | 24.6 | 6000 | 41.5 | 230 |
| 701-10 | 16 | 5/8 | -10 | 15.9 | 28.2 | 5000 | 35.0 | 250 |
| 701-12 | 20 | 3/4 | -12 | 19.1 | 32.2 | 5000 | 35.0 | 300 |
| 701-16 | 25 | 1 | -16 | 25.4 | 39.7 | 4000 | 28.0 | 340 |
