Parker 301SN Hydraulic Hose
Product

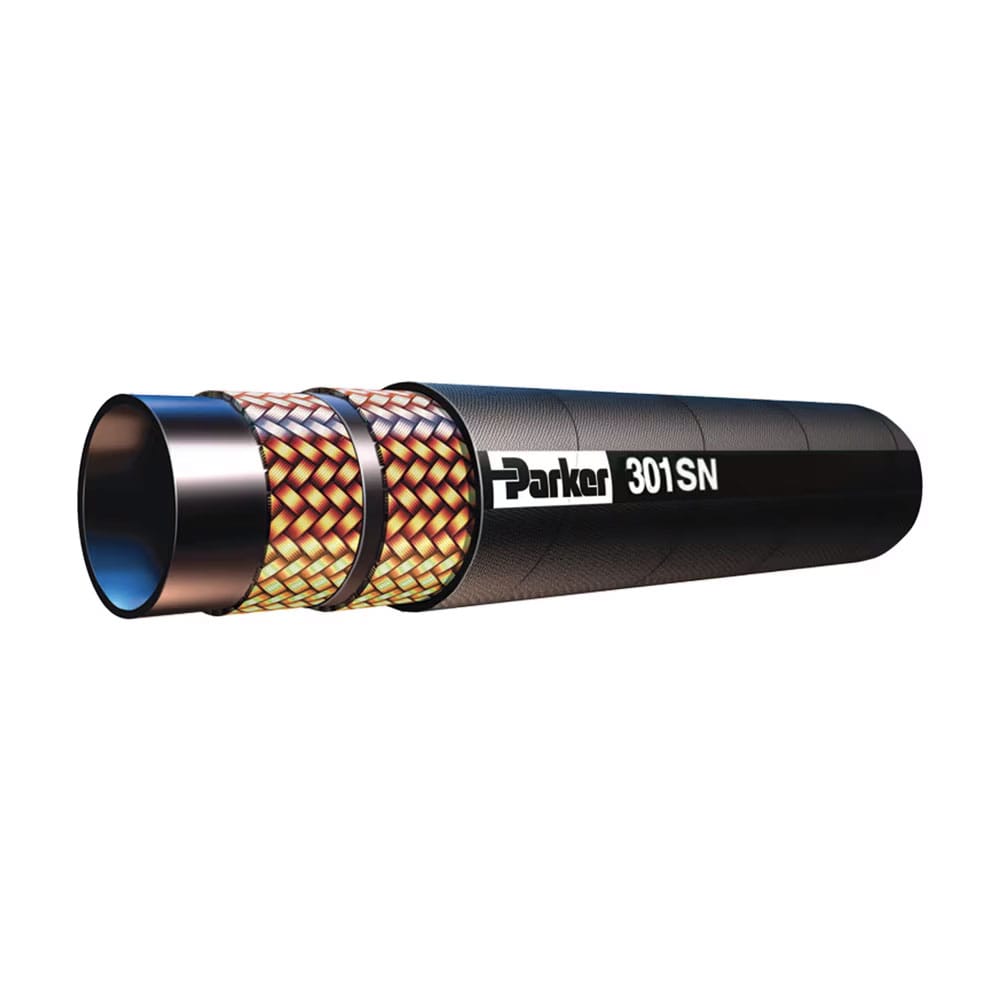

301SN – No-Skive hose – EN 853 2SN / ISO 1436 Type 2
Tube: nitrile (NBR).
Tube: nitrile (NBR).
Construction
Reinforcement: two high tensile steel wire braids.
Cover: synthetic rubber.
Cover: synthetic rubber.
Recommended fluids
Petroleum and water-glycol based fluids, lubricating oils, air and water. For air above 1.7 MPa, the hose cover must be pinpricked.
Operating temperature
-40°C to +100°C. (Air max. +70°C, Water max. +85°C)
Burst pressure
Operating pressure x 4
Applicable specifications
EN 853-2SN / SAE 100R2 AT / ISO 1436 Type 2
Fitting series
48
Applications
General medium pressure hydraulic applications.
Advantages
No-Skive thin cover hose construction, nitrile (NBR) inner tube.
Benefits
Benefits: For greater fluid compatibility and bio-oil resistance.
| Part number | Hose Inside Diameter DN | Hose Inside Diameter inch | Hose Inside Diameter Size | Hose Inside Diameter mm | Outside Diameter mm | Operating Pressure psi | Operating Pressure Mpa | Bend radius mm |
| 301SN-4 | 6 | 1/4 | -04 | 6.3 | 15.0 | 5800 | 40.0 | 100 |
| 301SN-5 | 8 | 5/16 | -05 | 7.9 | 16.6 | 5075 | 35.0 | 115 |
| 301SN-6 | 10 | 3/8 | -06 | 9.5 | 19.0 | 4775 | 33.0 | 130 |
| 301SN-8 | 12 | 1/2 | -08 | 12.7 | 22.2 | 4000 | 27.5 | 180 |
| 301SN-10 | 16 | 5/8 | -10 | 15.9 | 25.4 | 3600 | 25.0 | 200 |
| 301SN-12 | 20 | 3/4 | -12 | 19.1 | 29.3 | 3100 | 21.5 | 240 |
| 301SN-16 | 25 | 1 | -16 | 25.4 | 38.1 | 2400 | 16.5 | 300 |
| 301SN-20 | 32 | 1 1/4 | -20 | 31.8 | 47.5 | 1800 | 12.5 | 420 |
| 301SN-24 | 40 | 1 1/2 | -24 | 38.1 | 55.0 | 1300 | 9.0 | 500 |
| 301SN-32 | 50 | 2 | -32 | 50.8 | 67.0 | 1150 | 8.0 | 630 |
