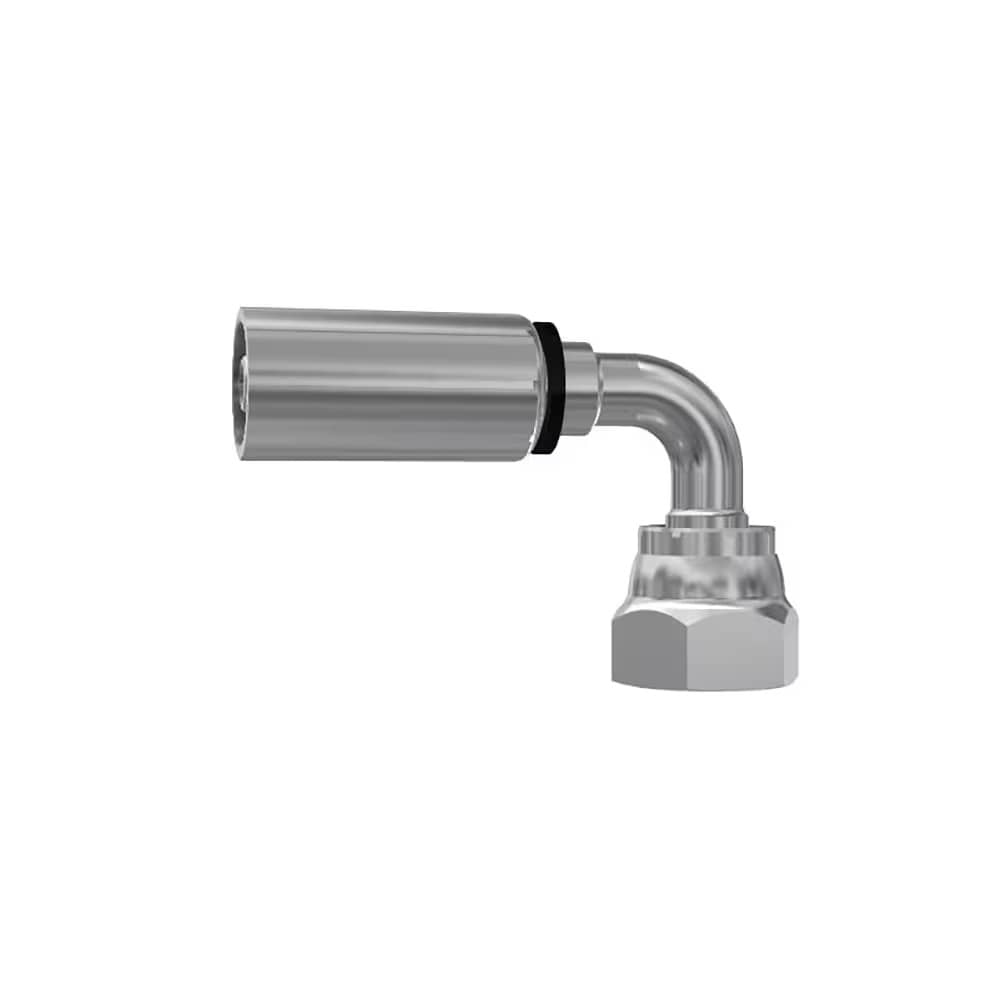

Parker 1MZ48 / 1MZ46 Female Metric Swivel – 90 degree
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female Metric
- Swivel – 90 degree 30° Flare
- JIS B8363
- Material: Steel, zinc plated

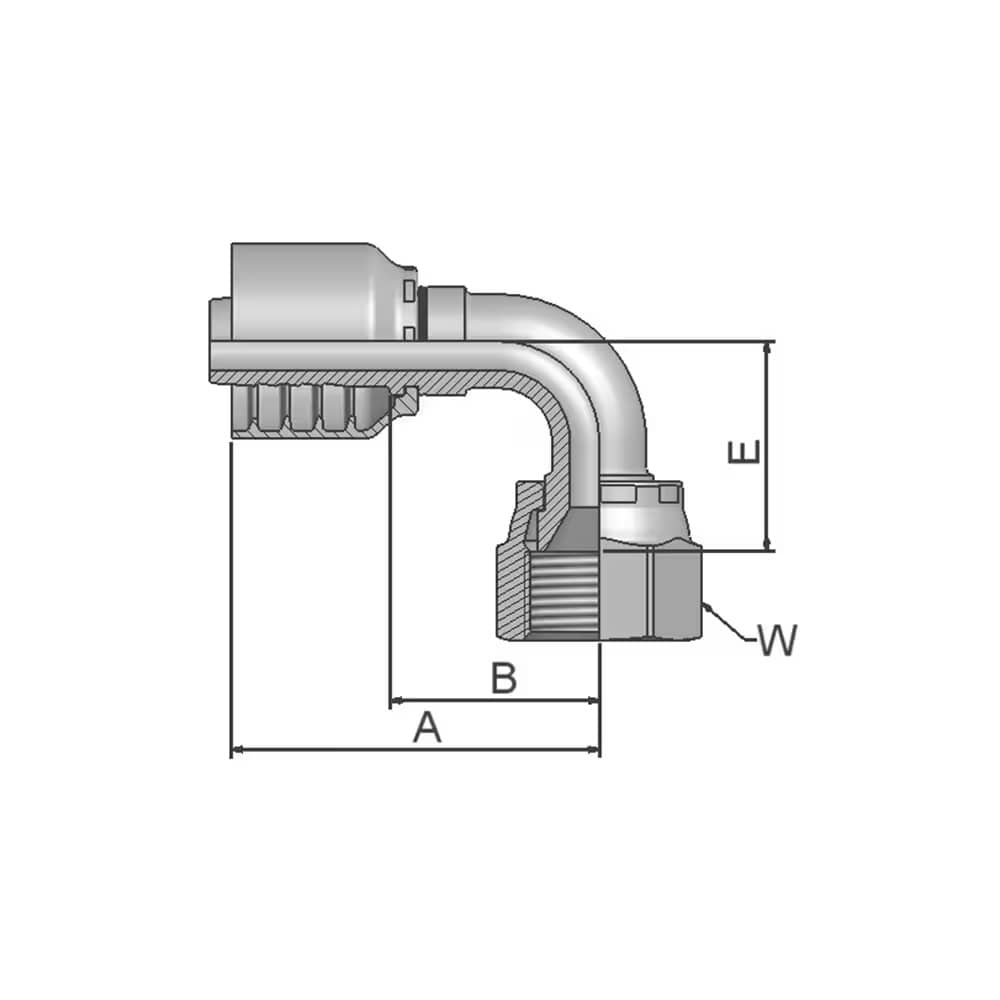

| Part Number | Hose I.D. | Thread | A | B | E | W | ||||
| 46 | 48 | DN | Inch | Size | mm | Metric | mm | mm | mm | mm |
| 1MZ46-4-4 | 1MZ48-4-4 | 6 | 1/4 | -4 | 6.4 | M14X1.5 | 48 | 24 | 23 | 19 |
| 1MZ46-6-6 | 1MZ48-6-6 | 10 | 3/8 | -6 | 9.5 | M18X1.5 | 51 | 28 | 29 | 24 |
| 1MZ46-8-8 | 1MZ48-8-8 | 12 | 1/2 | -8 | 12.7 | M22X1.5 | 55 | 31 | 31 | 27 |
