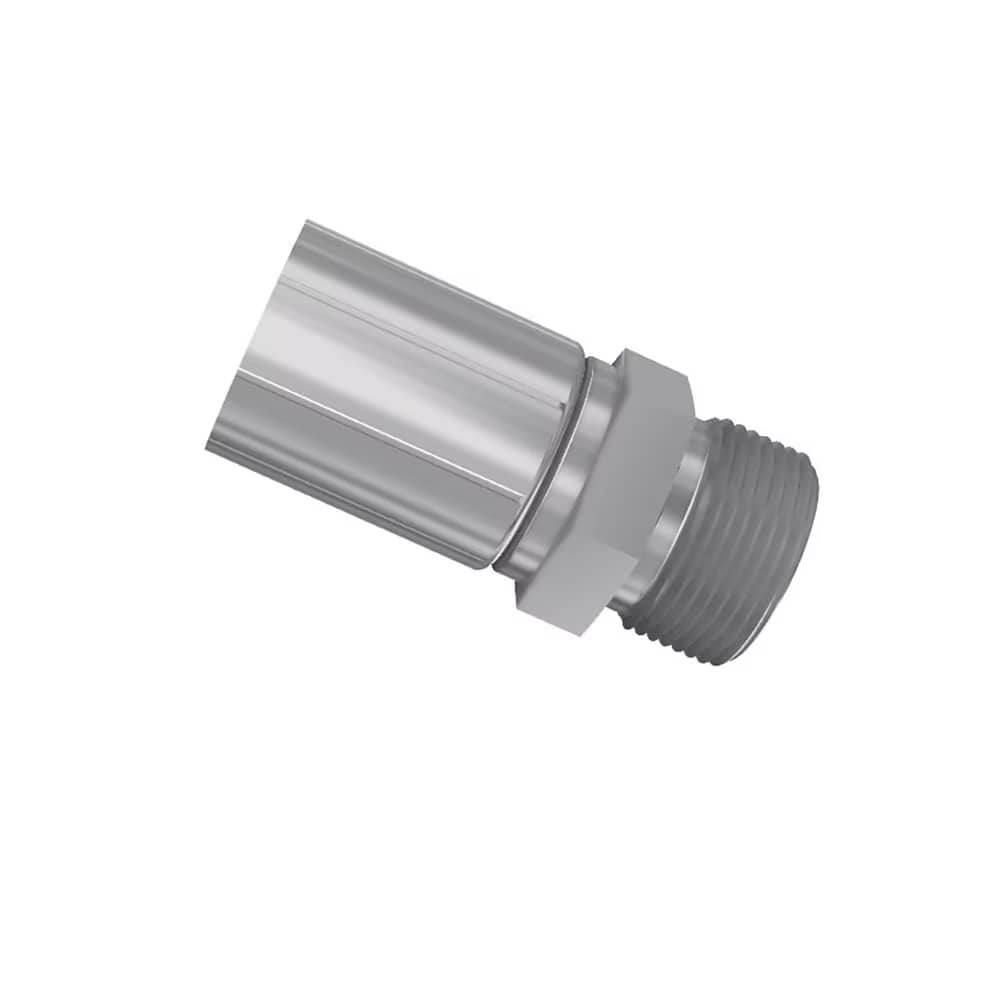

Parker 1JM48 / 1JM46 Male ORFS – Straight
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Male ORFS
- Male – Straight
- ISO 12151-1-S-SAE J516
- Material: Steel, zinc plated

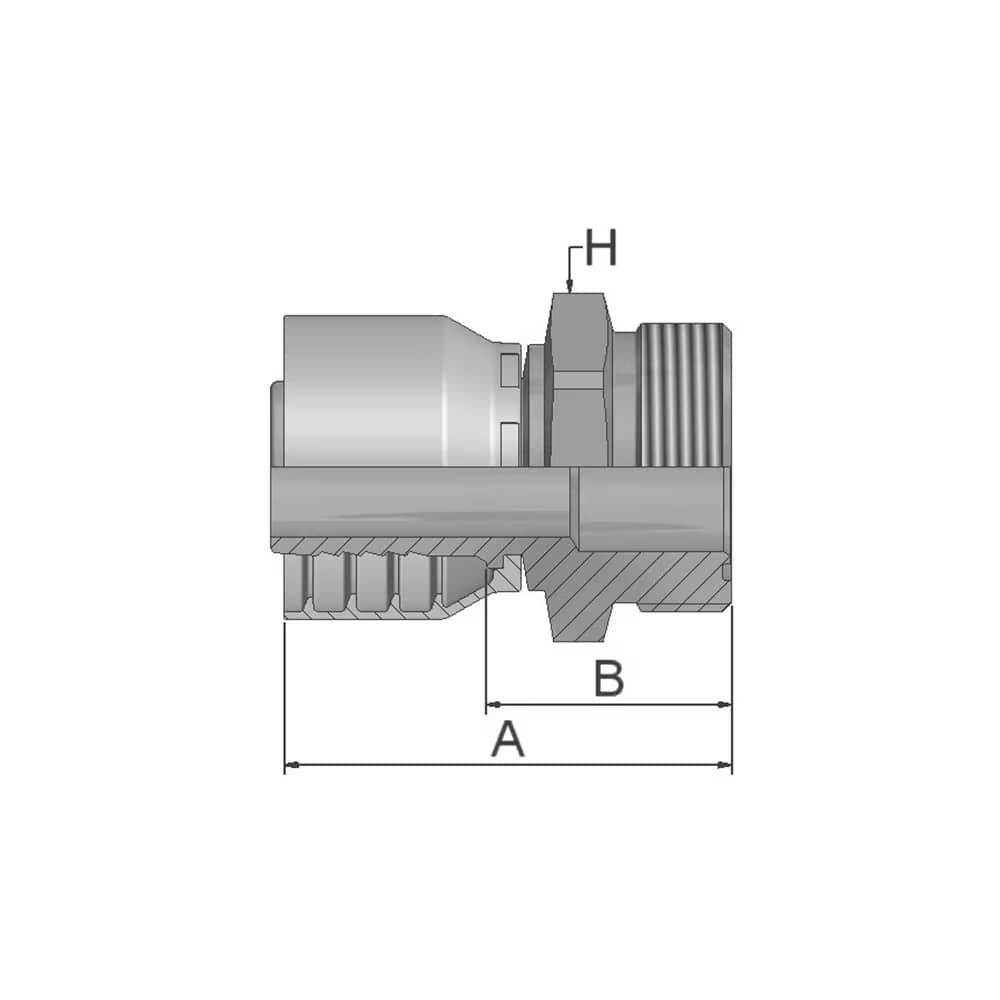

| Part Number | Hose I.D. | Thread | A | B | H | ||||
| 46 | 48 | DN | Inch | Size | mm | UNF | mm | mm | mm |
| 1JM46-4-4 | 6 | 1/4 | -4 | 6.4 | 9/16×18 | 46 | 22 | 17 | |
| 1JM48-4-4 | 6 | 1/4 | -4 | 6.4 | 9/16×18 | 44 | 22 | 17 | |
| 1JM46-6-4 | 6 | 1/4 | -4 | 6.4 | 11/16×16 | 48 | 24 | 19 | |
| 1JM48-6-4 | 6 | 1/4 | -4 | 6.4 | 11/16×16 | 46 | 24 | 19 | |
| 1JM46-6-5 | 1JM48-6-5 | 8 | 5/16 | -5 | 7.9 | 11/16×16 | 53 | 26 | 19 |
| 1JM46-6-6 | 1JM48-6-6 | 10 | 3/8 | -6 | 9.5 | 11/16×16 | 47 | 24 | 19 |
| 1JM46-8-6 | 1JM48-8-6 | 10 | 3/8 | -6 | 9.5 | 13/16×16 | 50 | 27 | 22 |
| 1JM46-8-8 | 1JM48-8-8 | 12 | 1/2 | -8 | 12.7 | 13/16×16 | 51 | 27 | 22 |
| 1JM46-10-8 | 1JM48-10-8 | 12 | 1/2 | -8 | 12.7 | 1×14 | 55 | 32 | 27 |
| 1JM46-10-10 | 1JM48-10-10 | 16 | 5/8 | -10 | 15.9 | 1×14 | 57 | 32 | 27 |
| 1JM46-12-10 | 1JM48-12-10 | 16 | 5/8 | -10 | 15.9 | 13/16×12 | 59 | 34 | 32 |
| 1JM46-12-12 | 1JM48-12-12 | 19 | 3/4 | -12 | 19.1 | 13/16×12 | 60 | 34 | 32 |
| 1JM46-16-12 | 1JM48-16-12 | 19 | 3/4 | -12 | 19.1 | 17/16×12 | 64 | 38 | 41 |
| 1JM46-16-16 | 1JM48-16-16 | 25 | 1 | -16 | 25.4 | 17/16×12 | 67 | 37 | 41 |
| 1JM46-20-16 | 1JM48-20-16 | 25 | 1 | -16 | 25.4 | 1 11/16×12 | 66 | 36 | 46 |
| 1JM48-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 11/16×12 | 85 | 37 | 46 |
