Parker 1JC48 / 1JC46 Female ORFS Swivel – Straight
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female ORFS Short
- Swivel – Straight
- ISO 12151-1-SWSA
- SAE J516 – ORFS
- Material: Steel, zinc plated

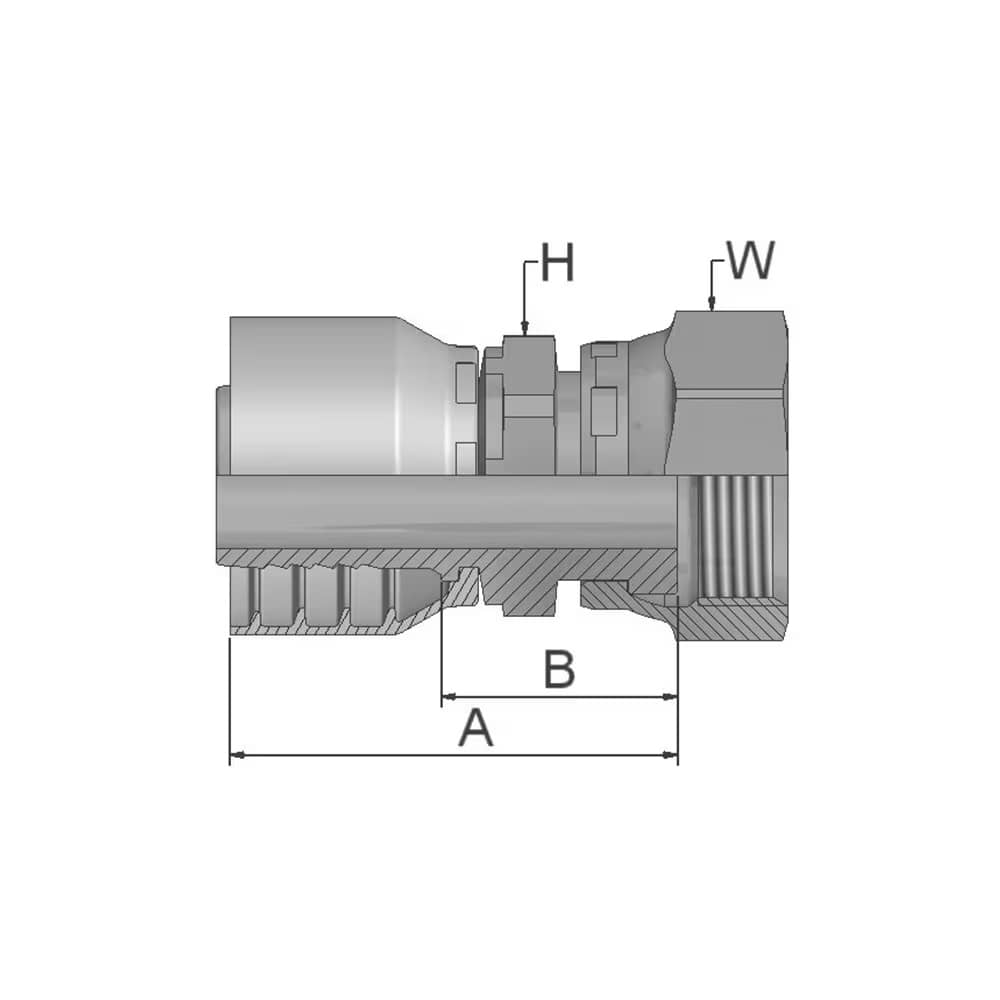

| Part Number | Hose I.D. | Thread | A | B | H | W | ||||
| 46 | 48 | DN | Inch | Size | mm | UNF | mm | mm | mm | mm |
| 1JC46-4-4 | 6 | 1/4 | -4 | 6.4 | 9/16×18 | 46 | 22 | 14 | 17 | |
| 1JC48-4-4* | 6 | 1/4 | -4 | 6.4 | 9/16×18 | 39 | 15 | 13 | 17 | |
| 1JC46-6-4 | 6 | 1/4 | -4 | 6.4 | 11/16×16 | 45 | 23 | 17 | 22 | |
| 1JC48-6-4* | 6 | 1/4 | -4 | 6.4 | 11/16×16 | 40 | 17 | 13 | 22 | |
| 1JC46-8-4 | 1JC48-8-4 | 6 | 1/4 | -4 | 6.4 | 13/16×16 | 45 | 22 | 19 | 24 |
| 1JC46-6-5 | 1JC48-6-5 | 8 | 5/16 | -5 | 7.9 | 11/16×16 | 47 | 23 | 17 | 22 |
| 1JC46-4-6 | 1JC48-4-6 | 10 | 3/8 | -6 | 9.5 | 9/16×18 | 42 | 19 | 17 | 17 |
| 1JC46-6-6 | 10 | 3/8 | -6 | 9.5 | 11/16×16 | 43 | 21 | 17 | 22 | |
| 1JC48-6-6* | 10 | 3/8 | -6 | 9.5 | 11/16×16 | 40 | 17 | 17 | 22 | |
| 1JC46-8-6 | 10 | 3/8 | -6 | 9.5 | 13/16×16 | 45 | 22 | 19 | 24 | |
| 1JC48-8-6* | 10 | 3/8 | -6 | 9.5 | 13/16×16 | 41 | 19 | 17 | 24 | |
| 1JC46-6-8 | 1JC48-6-8 | 12 | 1/2 | -8 | 12.7 | 11/16×16 | 44 | 20 | 17 | 22 |
| 1JC46-8-8 | 12 | 1/2 | -8 | 12.7 | 13/16×16 | 46 | 22 | 22 | 24 | |
| 1JC48-8-8* | 12 | 1/2 | -8 | 12.7 | 13/16×16 | 43 | 21 | 22 | 24 | |
| 1JC46-10-8 | 12 | 1/2 | -8 | 12.7 | 1×14 | 48 | 24 | 24 | 30 | |
| 1JC48-10-8* | 12 | 1/2 | -8 | 12.7 | 1×14 | 46 | 22 | 22 | 30 | |
| 1JC46-12-8 | 1JC48-12-8 | 12 | 1/2 | -8 | 12.7 | 13/16×12 | 52 | 29 | 30 | 36 |
| 1JC46-8-10 | 8-10 | 16 | 5/8 | -10 | 15.9 | 13/16×16 | 47 | 22 | 22 | 274 |
| 1JC46-10-10 | 16 | 5/8 | -10 | 15.9 | 1×14 | 51 | 26 | 24 | 30 | |
| 1JC48-10-10* | 16 | 5/8 | -10 | 15.9 | 1×14 | 49 | 24 | 24 | 30 | |
| 1JC46-12-10 | 16 | 5/8 | -10 | 15.9 | 13/16×12 | 54 | 28 | 30 | 36 | |
| 1JC48-12-10* | 16 | 5/8 | -10 | 15.9 | 13/16×12 | 51 | 26 | 24 | 36 | |
| 1JC46-10-12 | 1JC48-10-12 | 19 | 3/4 | -12 | 19.1 | 1×14 | 54 | 28 | 24 | 30 |
| 1JC46-12-12 | 19 | 3/4 | -12 | 19.1 | 13/16×12 | 55 | 29 | 30 | 36 | |
| 1JC48-12-12* | 19 | 3/4 | -12 | 19.1 | 13/16×12 | 52 | 27 | 27 | 36 | |
| 1JC46-16-12 | 1JC48-16-12 | 19 | 3/4 | -12 | 19.1 | 17/16×12 | 59 | 33 | 36 | 41 |
| 1JC48-12-16 | 25 | 1 | -16 | 25.4 | 13/16×12 | 60 | 30 | 32 | 36 | |
| 1JC46-16-16 | 25 | 1 | -16 | 25.4 | 17/16×12 | 63 | 33 | 36 | 41 | |
| 1JC48-16-16* | 25 | 1 | -16 | 25.4 | 17/16×12 | 63 | 31 | 32 | 41 | |
| 1JC46-20-16 | 25 | 1 | -16 | 25.4 | 1 11/16×12 | 62 | 32 | 41 | 50 | |
| 1JC48-20-16* | 25 | 1 | -16 | 25.4 | 1 11/16×12 | 63 | 31 | 32 | 50 | |
| 1JC46-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 11/16×12 | 71 | 33 | 41 | 50 | |
| 1JC48-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 11/16×12 | 85 | 36 | 50 | 50 |
