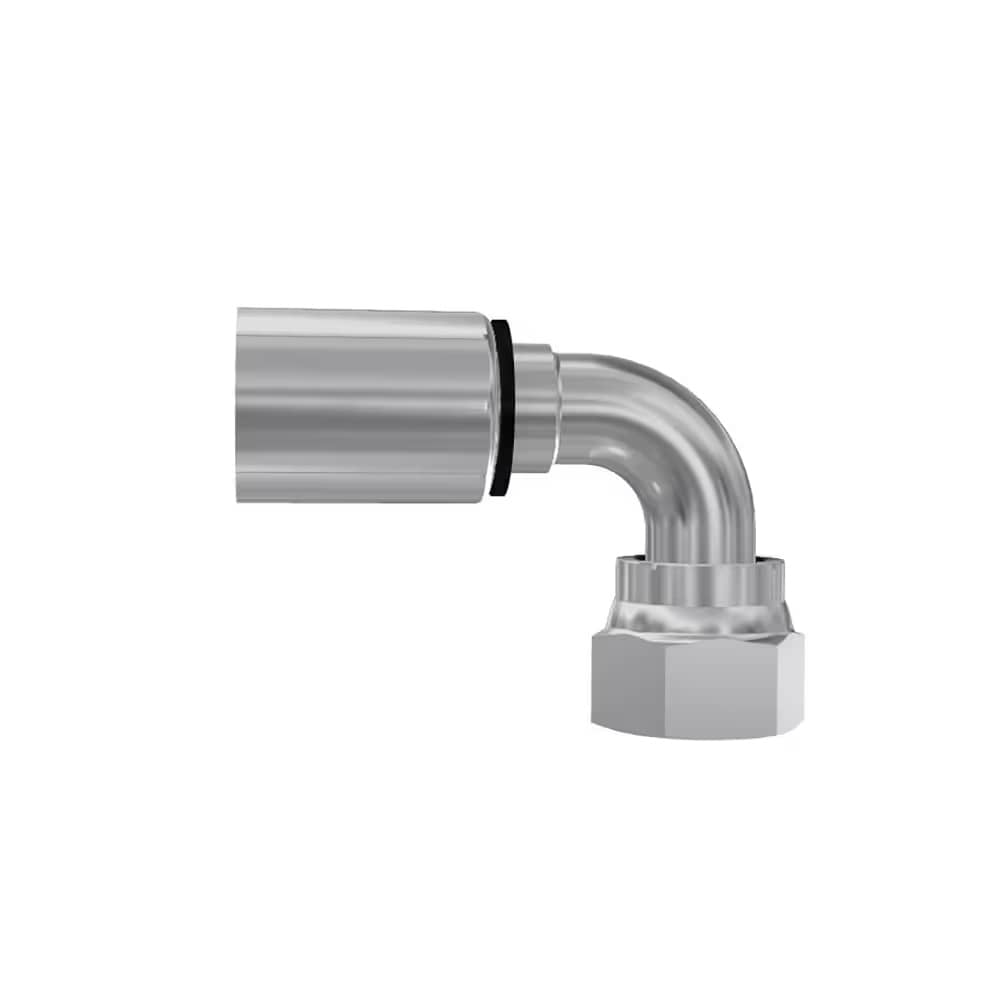

Parker 1J948 / 1J946 Female ORFS Swivel – 90 degree
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female ORFS Short
- Swivel – 90 degree
- ISO 12151-1-SWES
- SAE J516-ORFS 90°
- Material: Steel, zinc plated

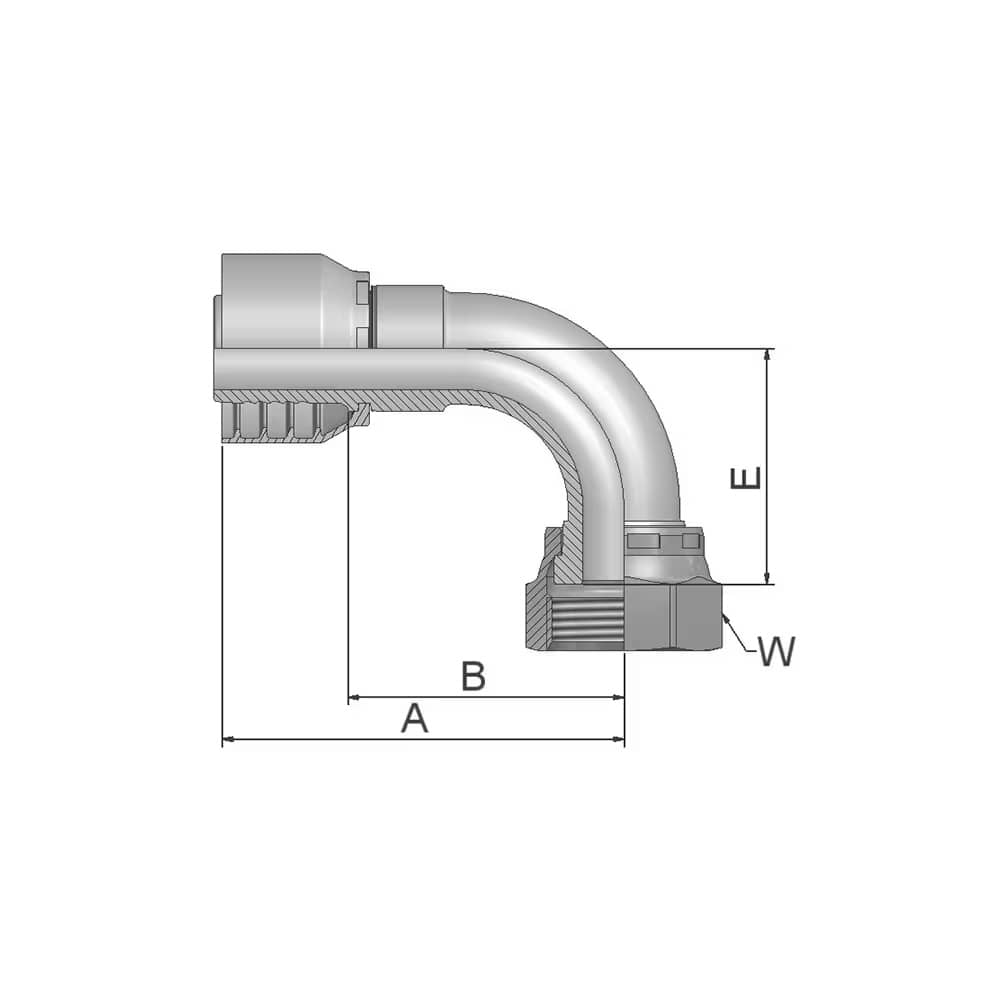

| Part Number | Hose I.D. | Thread | A | B | E | W | ||||
| 46 | 48 | DN | Inch | Size | mm | UNF | mm | mm | mm | mm |
| 1J946-4-4 | 1J948-4-4 | 6 | 1/4 | -4 | 6.4 | 9/16×18 | 52 | 29 | 21 | 17 |
| 1J946-6-4 | 1J948-6-4 | 6 | 1/4 | -4 | 6.4 | 11/16×16 | 51 | 27 | 23 | 22 |
| 1J948-8-4 | 6 | 1/4 | -4 | 6.4 | 13/16×16 | 50 | 26 | 29 | 24 | |
| 1J946-6-5 | 1J948-6-5 | 8 | 5/16 | -5 | 7.9 | 11/16×16 | 53 | 29 | 23 | 22 |
| 1J946-4-6 | 1J948-4-6 | 10 | 3/8 | -6 | 9.5 | 9/16×18 | 47 | 24 | 21 | 17 |
| 1J946-6-6 | 1J948-6-6 | 10 | 3/8 | -6 | 9.5 | 11/16×16 | 52 | 29 | 23 | 22 |
| 1J946-8-6 | 1J948-8-6 | 10 | 3/8 | -6 | 9.5 | 13/16×16 | 53 | 30 | 29 | 24 |
| 1J946-6-8 | 1J948-6-8 | 12 | 1/2 | -8 | 12.7 | 11/16×16 | 53 | 29 | 23 | 22 |
| 1J946-8-8 | 1J948-8-8 | 12 | 1/2 | -8 | 12.7 | 13/16×16 | 55 | 32 | 29 | 24 |
| 1J946-10-8 | 1J948-10-8 | 12 | 1/2 | -8 | 12.7 | 1×14 | 66 | 42 | 32 | 30 |
| 1J946-12-8 | 1J948-12-8 | 12 | 1/2 | -8 | 12.7 | 13/16×12 | 58 | 34 | 48 | 36 |
| 1J946-10-10 | 1J948-10-10 | 16 | 5/8 | -10 | 15.9 | 1×14 | 65 | 39 | 32 | 30 |
| 1J946-12-10 | 1J948-12-10 | 16 | 5/8 | -10 | 15.9 | 13/16×12 | 71 | 45 | 48 | 36 |
| 1J946-10-12 | 1J948-10-12 | 19 | 3/4 | -12 | 19.1 | 1×14 | 69 | 43 | 32 | 30 |
| 1J946-12-12 | 1J948-12-12 | 19 | 3/4 | -12 | 19.1 | 13/16×12 | 80 | 54 | 48 | 36 |
| 1J946-16-12 | 19 | 3/4 | -12 | 19.1 | 17/16×12 | 88 | 62 | 56 | 41 | |
| 1J946-12-16 | 25 | 1 | -16 | 25.4 | 13/16×12 | 88 | 58 | 48 | 36 | |
| 1J948-12-16 | 25 | 1 | -16 | 25.4 | 13/16×12 | 88 | 58 | 48 | 36 | |
| 1J946-16-16 | 1J948-16-16 | 25 | 1 | -16 | 25.4 | 17/16×12 | 98 | 68 | 56 | 41 |
| 1J946-20-16 | 1J948-20-16 | 25 | 1 | -16 | 25.4 | 1 11/16×12 | 104 | 74 | 64 | 50 |
| 1J946-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 11/16×12 | 124 | 86 | 64 | 50 | |
| 1J948-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 11/16×12 | 129 | 82 | 64 | 50 | |
| 1J948-24-24 | 38 | 1 1/2 | -24 | 38.1 | 2×12 | 140 | 102 | 82 | 60 |
