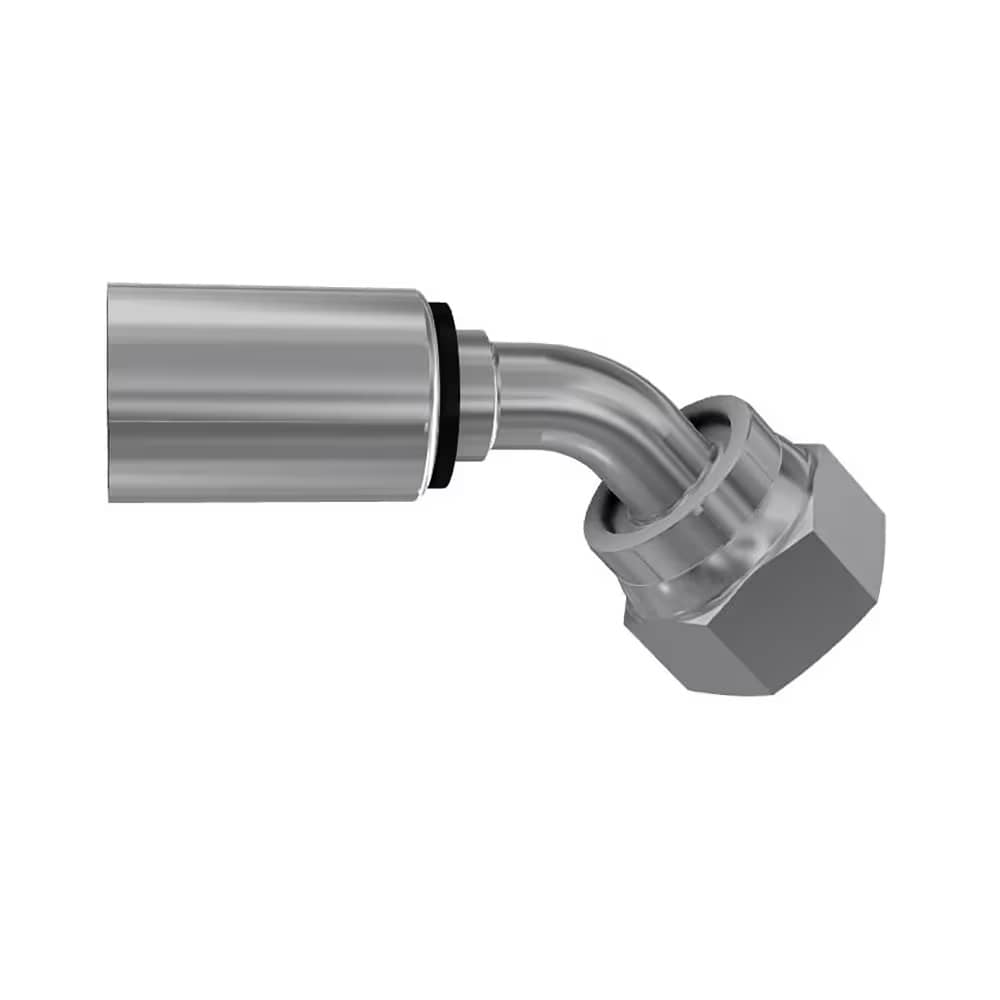

Parker 1J748 / 1J746 Female ORFS Swivel – 45 degree
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female ORFS
- Swivel – 45 degree
- ISO 12151-1-SWS 45°
- SAE J516-ORFS 45°
- Material: Steel, zinc plated
| Part Number | Hose I.D. | Thread | A | B | E | W | ||||
| 46 | 48 | DN | Inch | Size | mm | UNF | mm | mm | mm | mm |
| 1J746-4-4 | 1J748-4-4 | 6 | 1/4 | -4 | 6.4 | 9/16×18 | 54 | 31 | 10 | 17 |
| 1J746-6-4 | 1J748-6-4 | 6 | 1/4 | -4 | 6.4 | 11/16×16 | 53 | 30 | 11 | 22 |
| 1J746-8-4 | 1J748-8-4 | 6 | 1/4 | -4 | 6.4 | 13/16×16 | 59 | 34 | 15 | 24 |
| 1J746-6-5 | 1J748-6-5 | 8 | 5/16 | -5 | 7.9 | 11/16×16 | 56 | 32 | 11 | 22 |
| 1J746-6-6 | 1J748-6-6 | 10 | 3/8 | -6 | 9.5 | 11/16×16 | 54 | 31 | 11 | 22 |
| 1J746-8-6 | 1J748-8-6 | 10 | 3/8 | -6 | 9.5 | 13/16×16 | 59 | 36 | 15 | 24 |
| 1J746-6-8 | 12 | 1/2 | -8 | 12.7 | 11/16×16 | 57 | 33 | 11 | 22 | |
| 1J748-6-8 | 12 | 1/2 | -8 | 12.7 | 11/16×16 | 57 | 33 | 11 | 22 | |
| 1J746-8-8 | 1J748-8-8 | 12 | 1/2 | -8 | 12.7 | 13/16×16 | 61 | 38 | 15 | 24 |
| 1J746-10-8 | 1J748-10-8 | 12 | 1/2 | -8 | 12.7 | 1×14 | 65 | 41 | 16 | 30 |
| 1J746-12-8 | 1J748-12-8 | 12 | 1/2 | -8 | 12.7 | 13/16×12 | 77 | 53 | 21 | 36 |
| 1J746-10-10 | 1J748-10-10 | 16 | 5/8 | -10 | 15.9 | 1×14 | 67 | 42 | 16 | 30 |
| 1J746-12-10 | 1J748-12-10 | 16 | 5/8 | -10 | 15.9 | 13/16×12 | 80 | 55 | 21 | 36 |
| 1J746-10-12 | 1J748-10-12 | 19 | 3/4 | -12 | 19.1 | 1×14 | 73 | 47 | 16 | 30 |
| 1J746-12-12 | 1J748-12-12 | 19 | 3/4 | -12 | 19.1 | 13/16×12 | 83 | 57 | 21 | 36 |
| 1J746-16-12 | 1J748-16-12 | 19 | 3/4 | -12 | 19.1 | 17/16×12 | 94 | 68 | 24 | 41 |
| 1J746-12-16 | 1J748-12-16 | 25 | 1 | -16 | 25.4 | 13/16×12 | 91 | 61 | 21 | 36 |
| 1J746-16-16 | 1J748-16-16 | 25 | 1 | -16 | 25.4 | 17/16×12 | 9*9 | 69 | 24 | 41 |
| 1J746-20-16 | 1J748-20-16 | 25 | 1 | -16 | 25.4 | 1 11/16×12 | 101 | 71 | 25 | 50 |
| 1J746-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 11/16×12 | 124 | 86 | 26 | 50 | |
| 1J748-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 11/16×12 | 130 | 82 | 27 | 50 | |
| 1J748-24-24 | 38 | 1 1/2 | -24 | 38.1 | 2×12 | 148 | 110 | 40 | 60 |
