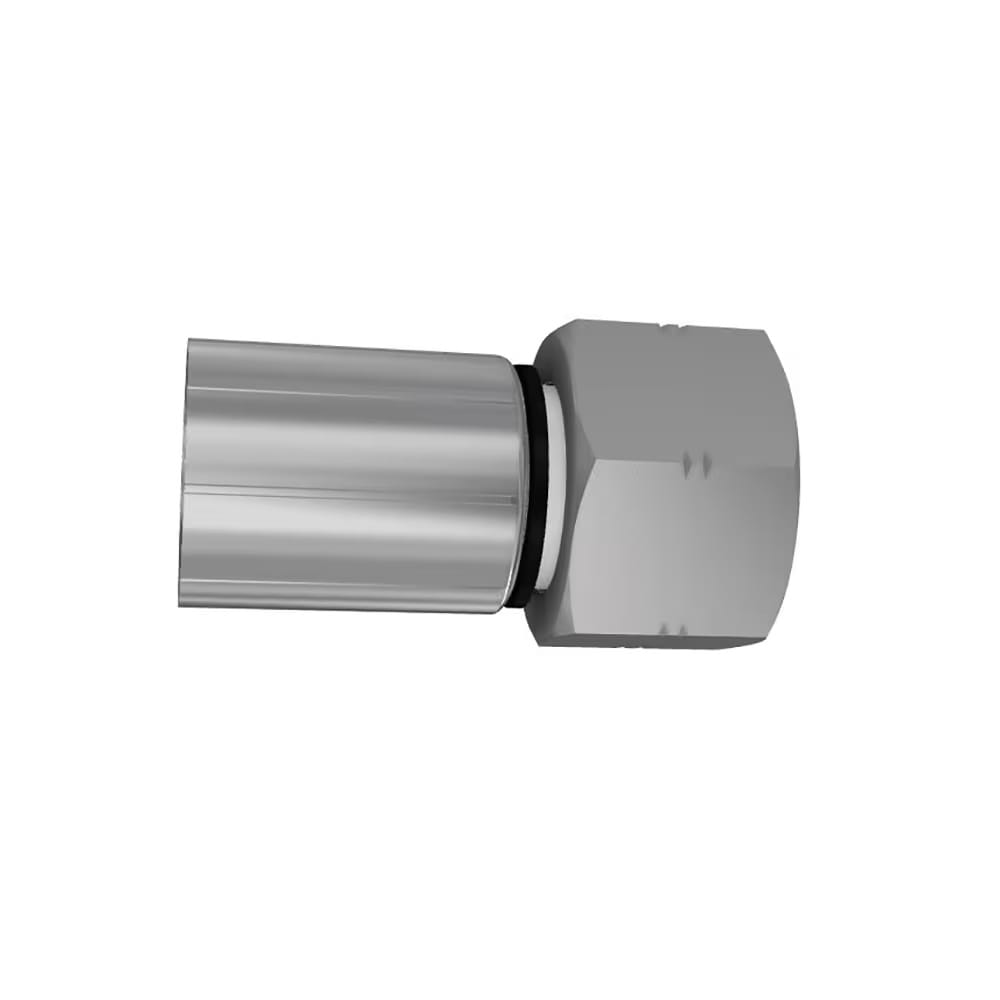

Parker 1EA48 / 1EA46 Female BSPP Swivel – Straight
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female BSP Parallel Pipe with O-Ring
- Swivel – Straight (60° Cone)
- BS 5200-ISO 12151-6-DKOR
- Material: Steel, zinc plated

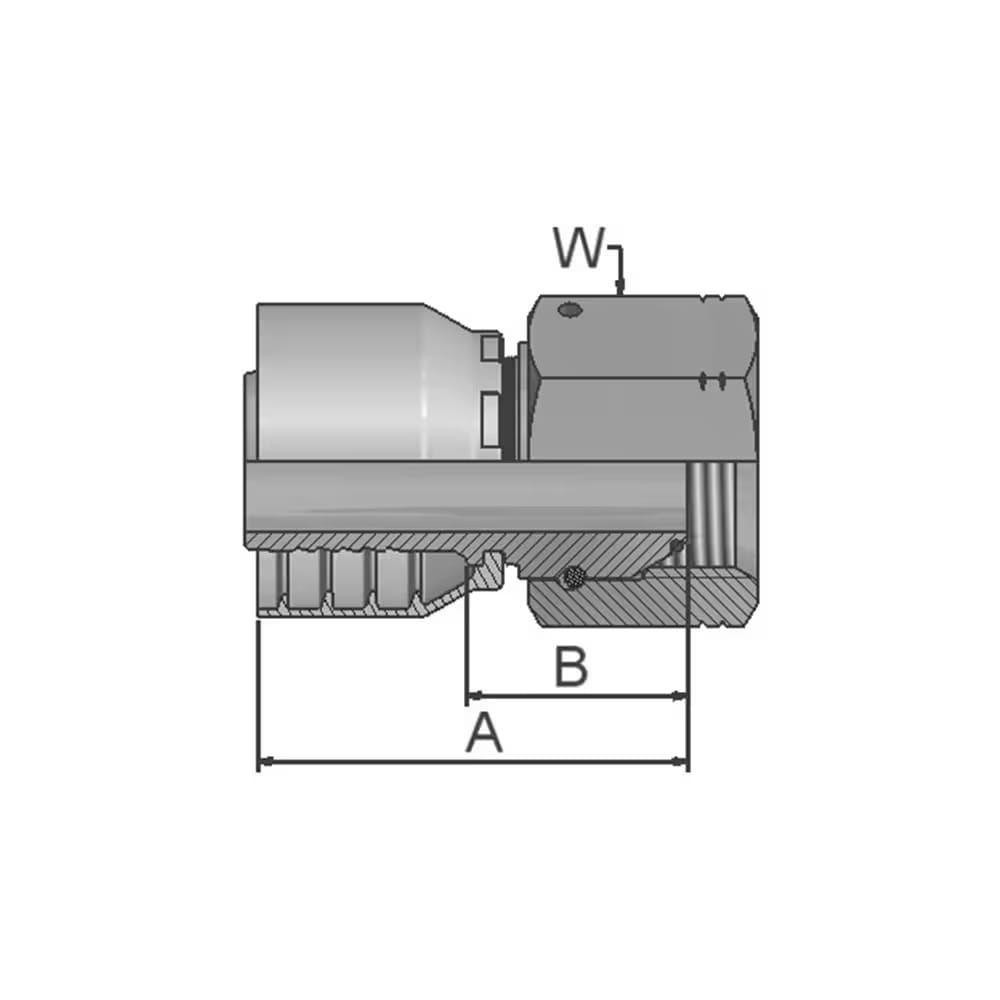

| Part Number | Hose I.D. | Thread | A | B | W | ||||
| 46 | 48 | DN | Inch | Size | mm | BSP | mm | mm | mm |
| 1EA46-4-4 | 1EA48-4-4 | 6 | 1/4 | -4 | 6.4 | 1/4×19 | 40 | 17 | 19 |
| 1EA46-6-4 | 1EA48-6-4 | 6 | 1/4 | -4 | 6.4 | 3/8X19 | 49 | 26 | 22 |
| 1EA48-6-5 | 8 | 5/16 | -5 | 7.9 | 3/8X19 | 50 | 25 | 22 | |
| 1EA48-4-6 | 10 | 3/8 | -6 | 9.5 | 1/4X19 | 44 | 21 | 19 | |
| 1EA46-6-6 | 1EA48-6-6 | 10 | 3/8 | -6 | 9.5 | 3/8X19 | 43 | 20 | 22 |
| 1EA46-8-6 | 1EA48-8-6 | 10 | 3/8 | -6 | 9.5 | 1/2X14 | 51 | 28 | 27 |
| 1EA48-6-8 | 12 | 1/2 | -8 | 12.7 | 3/8X19 | 46 | 22 | 22 | |
| 1EA46-8-8 | 1EA48-8-8 | 12 | 1/2 | -8 | 12.7 | 1/2X14 | 45 | 22 | 27 |
| 1EA48-10-8 | 12 | 1/2 | -8 | 12.7 | 5/8X14 | 43 | 20 | 30 | |
| 1EA46-10-10 | 1EA48-10-10 | 16 | 5/8 | -10 | 15.9 | 5/8X14 | 46 | 21 | 30 |
| 1EA46-12-10 | 1EA48-12-10 | 16 | 5/8 | -10 | 15.9 | 3/4X14 | 54 | 29 | 32 |
| 1EA46-12-12 | 1EA48-12-12 | 19 | 3/4 | -12 | 19.1 | 3/4X14 | 49 | 23 | 32 |
| 1EA46-16-12 | 1EA48-16-12 | 19 | 3/4 | -12 | 19.1 | 1X11 | 61 | 35 | 41 |
| 1EA46-16-16 | 1EA48-16-16 | 25 | 1 | -16 | 25.4 | 1X11 | 61 | 31 | 41 |
| 1EA48-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4X11 | 78 | 31 | 50 | |
| 1EA48-24-24 | 38 | 1 1/2 | -24 | 38.1 | 1 1/2X11 | 72 | 34 | 55 |
