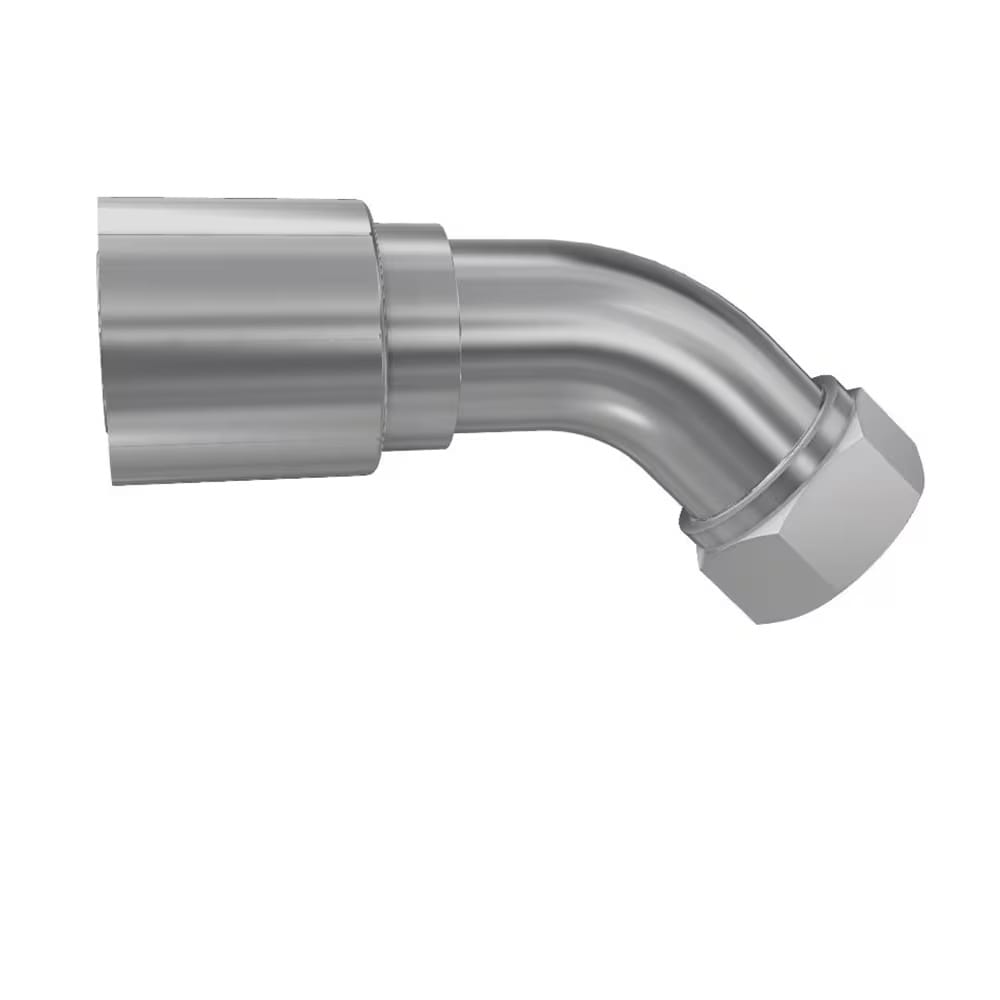

Parker 1CE48 / 1CE46 Female Metric Light Swivel – 45 degree
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female Metric light
- Swivel – 45 degree (24° Cone)
- ISO 12151-2-SWE-L-DKOL 45°
- Material: Steel, zinc plated

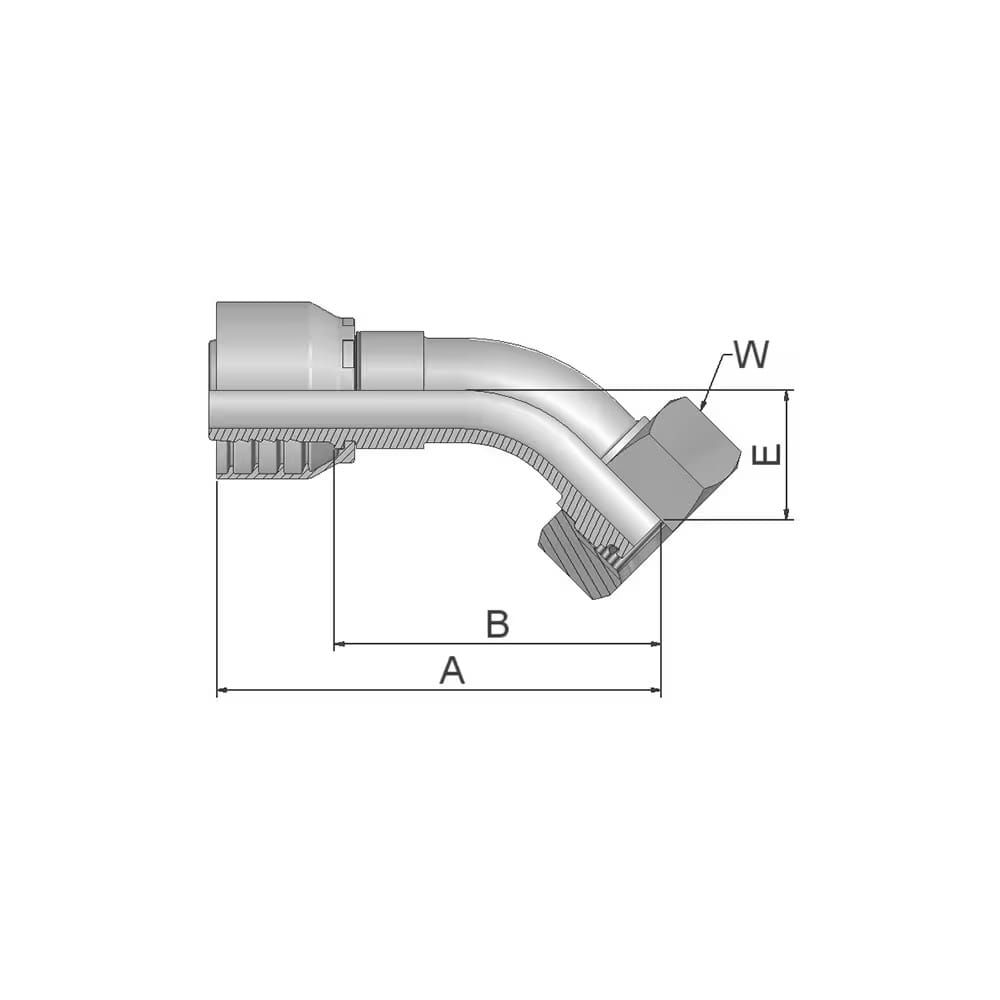

| Part Number | Hose I.D. | Thread | Tube O.D. | A | B | E | W | ||||
| 46 | 48 | DN | Inch | Size | mm | Metric | mm | mm | mm | mm | mm |
| 1CE46-6-4 | 6 | 1/4 | -4 | 6.4 | M12X1.5 | 6 | 69 | 46 | 19 | 14 | |
| 1CE48-6-4 | 6 | 1/4 | -4 | 6.4 | M12X1.5 | 6 | 70 | 45 | 19 | 14 | |
| 1CE46-8-4 | 1CE48-8-4 | 6 | 1/4 | -4 | 6.4 | M14X1.5 | 8 | 59 | 36 | 16 | 17 |
| 1CE46-10-4 | 1CE48-10-4 | 6 | 1/4 | -4 | 6.4 | M16X1.5 | 10 | 59 | 36 | 16 | 19 |
| 1CE46-12-4 | 1CE48-12-4 | 6 | 1/4 | -4 | 6.4 | M18X1.5 | 12 | 60 | 36 | 16 | 22 |
| 1CE46-8-5 | 1CE48-8-5 | 8 | 5/16 | -5 | 7.9 | M14X1.5 | 8 | 65 | 41 | 20 | 17 |
| 1CE46-10-5 | 1CE48-10-5 | 8 | 5/16 | -5 | 7.9 | M16X1.5 | 10 | 68 | 44 | 16 | 19 |
| 1CE46-12-5 | 1CE48-12-5 | 8 | 5/16 | -5 | 7.9 | M18X1.5 | 12 | 61 | 38 | 17 | 22 |
| 1CE46-10-6 | 1CE48-10-6 | 10 | 3/8 | -6 | 9.5 | M16X1.5 | 10 | 69 | 46 | 20 | 19 |
| 1CE46-12-6 | 1CE48-12-6 | 10 | 3/8 | -6 | 9.5 | M18X1.5 | 12 | 68 | 45 | 19 | 22 |
| 1CE46-15-6 | 1CE48-15-6 | 10 | 3/8 | -6 | 9.5 | M22X1.5 | 15 | 69 | 46 | 20 | 27 |
| 1CE46-12-8 | 1CE48-12-8 | 12 | 1/2 | -8 | 12.7 | M18X1.5 | 12 | 75 | 51 | 24 | 22 |
| 1CE46-15-8 | 1CE48-15-8 | 12 | 1/2 | -8 | 12.7 | M22X1.5 | 15 | 71 | 48 | 23 | 27 |
| 1CE46-18-8 | 1CE48-18-8 | 12 | 1/2 | -8 | 12.7 | M26X1.5 | 18 | 71 | 47 | 22 | 32 |
| 1CE46-15-10 | 1CE48-15-10 | 16 | 5/8 | -10 | 15.9 | M22X1.5 | 15 | 79 | 54 | 26 | 27 |
| 1CE46-18-10 | 1CE48-18-10 | 16 | 5/8 | -10 | 15.9 | M26X1.5 | 18 | 75 | 50 | 23 | 32 |
| 1CE46-18-12 | 1CE48-18-12 | 19 | 3/4 | -12 | 19.1 | M26X1.5 | 18 | 90 | 64 | 27 | 32 |
| 1CE46-22-12 | 1CE48-22-12 | 19 | 3/4 | -12 | 19.1 | M30X2 | 22 | 88 | 62 | 26 | 36 |
| 1CE46-28-12 | 1CE48-28-12 | 19 | 3/4 | -12 | 19.1 | M36X2 | 28 | 90 | 64 | 28 | 41 |
| 1CE46-22-16 | 1CE48-22-16 | 25 | 1 | -16 | 25.4 | M30X2 | 22 | 112 | 82 | 35 | 36 |
| 1CE46-28-16 | 25 | 1 | -16 | 25.4 | M36X2 | 28 | 113 | 83 | 33 | 41 | |
| 1CE48-28-16 | 25 | 1 | -16 | 25.4 | M36X2 | 28 | 113 | 83 | 33 | 41 | |
| 1CE48-28-20 | 31 | 1 1/4 | -20 | 31.8 | M36X2 | 28 | 142 | 95 | 39 | 41 | |
| 1CE46-35-20 | 31 | 1 1/4 | -20 | 31.8 | M45X2 | 35 | 130 | 92 | 32 | 50 | |
| 1CE48-35-20 | 31 | 1 1/4 | -20 | 31.8 | M45X2 | 35 | 141 | 94 | 37 | 50 | |
| 1CE48-42-24 | 38 | 1 1/2 | -24 | 38.1 | M52X2 | 42 | 155 | 117 | 49 | 60 |
