Parker 1CA48 / 1CA46 Female Metric Light Swivel – Straight
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female Metric light
- Swivel – Straight (24° Cone)
- ISO 12151-2SWS-L-DKOL
- Material: Steel, zinc plated

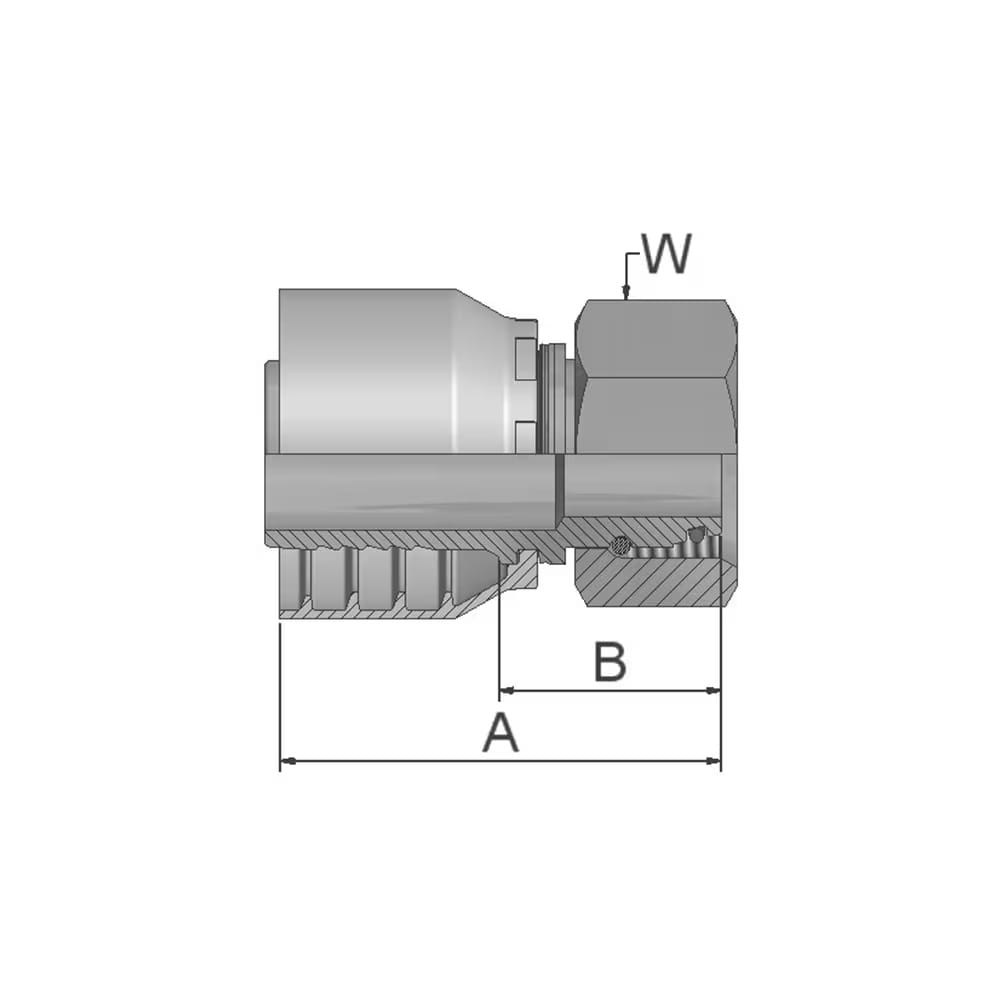

| Part Number | Hose I.D. | Thread | Tube O.D. | A | B | W | ||||
| 46 | 48 | DN | Inch | Size | mm | Metric | mm | mm | mm | mm |
| 1CA46-6-4 | 1CA48-6-4 | 6 | 1/4 | -4 | 6.4 | M12X1.5 | 6 | 46 | 22 | 14 |
| 1CA46-8-4 | 1CA48-8-4 | 6 | 1/4 | -4 | 6.4 | M14X1.5 | 8 | 47 | 24 | 17 |
| 1CA46-10-4 | 1CA48-10-4 | 6 | 1/4 | -4 | 6.4 | M16X1.5 | 10 | 47 | 22 | 19 |
| 1CA46-12-4 | 1CA48-12-4 | 6 | 1/4 | -4 | 6.4 | M18X1.5 | 12 | 46 | 22 | 22 |
| 1CA46-8-5 | 1CA48-8-5 | 8 | 5/16 | -5 | 7.9 | M14X1.5 | 8 | 50 | 26 | 17 |
| 1CA46-10-5 | 1CA48-10-5 | 8 | 5/16 | -5 | 7.9 | M16X1.5 | 10 | 46 | 23 | 19 |
| 1CA46-12-5 | 1CA48-12-5 | 8 | 5/16 | -5 | 7.9 | M18X1.5 | 12 | 46 | 22 | 22 |
| 1CA46-8-6 | 1CA48-8-6 | 10 | 3/8 | -6 | 9.5 | M14X1.5 | 8 | 49 | 26 | 17 |
| 1CA46-10-6 | 1CA48-10-6 | 10 | 3/8 | -6 | 9.5 | M16X1.5 | 10 | 46 | 23 | 19 |
| 1CA46-12-6 | 1CA48-12-6 | 10 | 3/8 | -6 | 9.5 | M18X1.5 | 12 | 46 | 23 | 22 |
| 1CA46-15-6 | 1CA48-15-6 | 10 | 3/8 | -6 | 9.5 | M22X1.5 | 15 | 47 | 24 | 27 |
| 1CA46-18-6 | 1CA48-18-6 | 10 | 3/8 | -6 | 9.5 | M26X1.5 | 18 | 50 | 28 | 32 |
| 1CA46-12-8 | 1CA48-12-8 | 12 | 1/2 | -8 | 12.7 | M18X1.5 | 12 | 50 | 26 | 22 |
| 1CA46-15-8 | 1CA48-15-8 | 12 | 1/2 | -8 | 12.7 | M22X1.5 | 15 | 50 | 26 | 27 |
| 1CA46-18-8 | 1CA48-18-8 | 12 | 1/2 | -8 | 12.7 | M26X1.5 | 18 | 49 | 25 | 32 |
| -CA46-15-10 | 1CA48-15-10 | 16 | 5/8 | -10 | 15.9 | M22X1.5 | 15 | 54 | 29 | 27 |
| 1CA46-18-10 | 1CA48-18-10 | 16 | 5/8 | -10 | 15.9 | M26X1.5 | 18 | 50 | 25 | 32 |
| 1CA46-22-10 | 1CA48-22-10 | 16 | 5/8 | -10 | 15.9 | M30X2 | 22 | 58 | 33 | 36 |
| 1CA46-18-12 | 1CA48-18-12 | 19 | 3/4 | -12 | 19.1 | M26X15 | 18 | 21 | 25 | 32 |
| 1CA46-22-12 | 1CA48-22-12 | 19 | 3/4 | -12 | 19.1 | M30X2 | 22 | 56 | 30 | 36 |
| 1CA46-28-12 | 1CA48-28-12 | 19 | 3/4 | -12 | 19.1 | M36X2 | 28 | 61 | 35 | 41 |
| 1CA46-22-16 | 1CA48-22-16 | 25 | 1 | -16 | 25.4 | M30X2 | 22 | 60 | 30 | 36 |
| 1CA46-28-16 | 1CA48-28-16 | 25 | 1 | -16 | 25.4 | M36X2 | 28 | 63 | 33 | 41 |
| 1CA46-35-16 | 1CA48-35-16 | 25 | 1 | -16 | 25.4 | M45X2 | 35 | 63 | 33 | 50 |
| 1CA48-28-20 | 31 | 1 1/4 | -20 | 31.8 | M36X2 | 28 | 81 | 34 | 41 | |
| 1CA46-35-20 | 31 | 1 1/4 | -20 | 31.8 | M45X2 | 35 | 69 | 31 | 50 | |
| 1CA48-35-20 | 31 | 1 1/4 | -20 | 31.8 | M45X2 | 35 | 82 | 35 | 50 | |
| 1CA48-42-20 | 31 | 1 1/4 | -20 | 31.8 | M52X2 | 42 | 82 | 35 | 60 | |
| 1CA48-35-24 | 38 | 1 1/2 | -24 | 38.1 | M45X2 | 35 | 75 | 37 | 50 | |
| 1CA48-42-24 | 38 | 1 1/2 | -24 | 38.1 | M52X2 | 42 | 77 | 39 | 60 |
