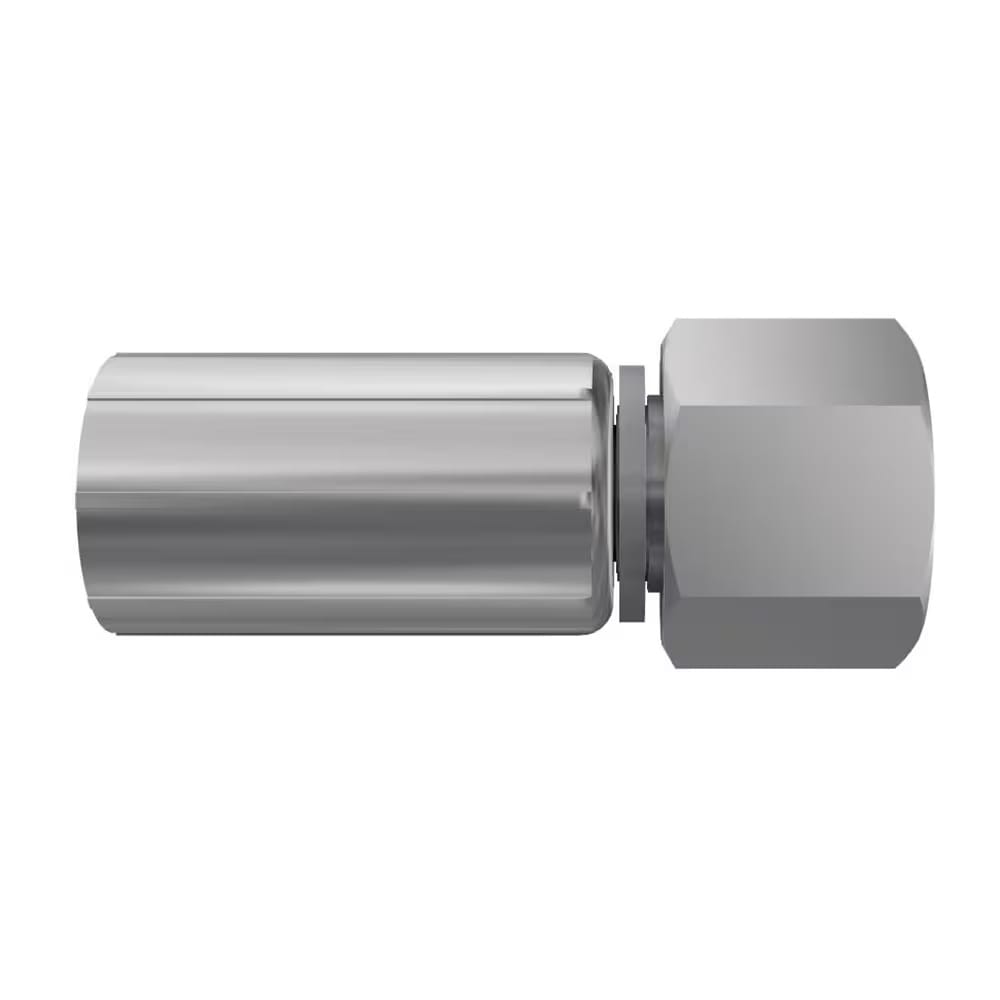

Parker 1C948 / 1C946 Female Metric Heavy Swivel – Straight
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female Metric heavy
- Swivel – Straight (24° Cone)
- ISO 12151-2-SWS-S-DKOS
- Material: Steel, zinc plated

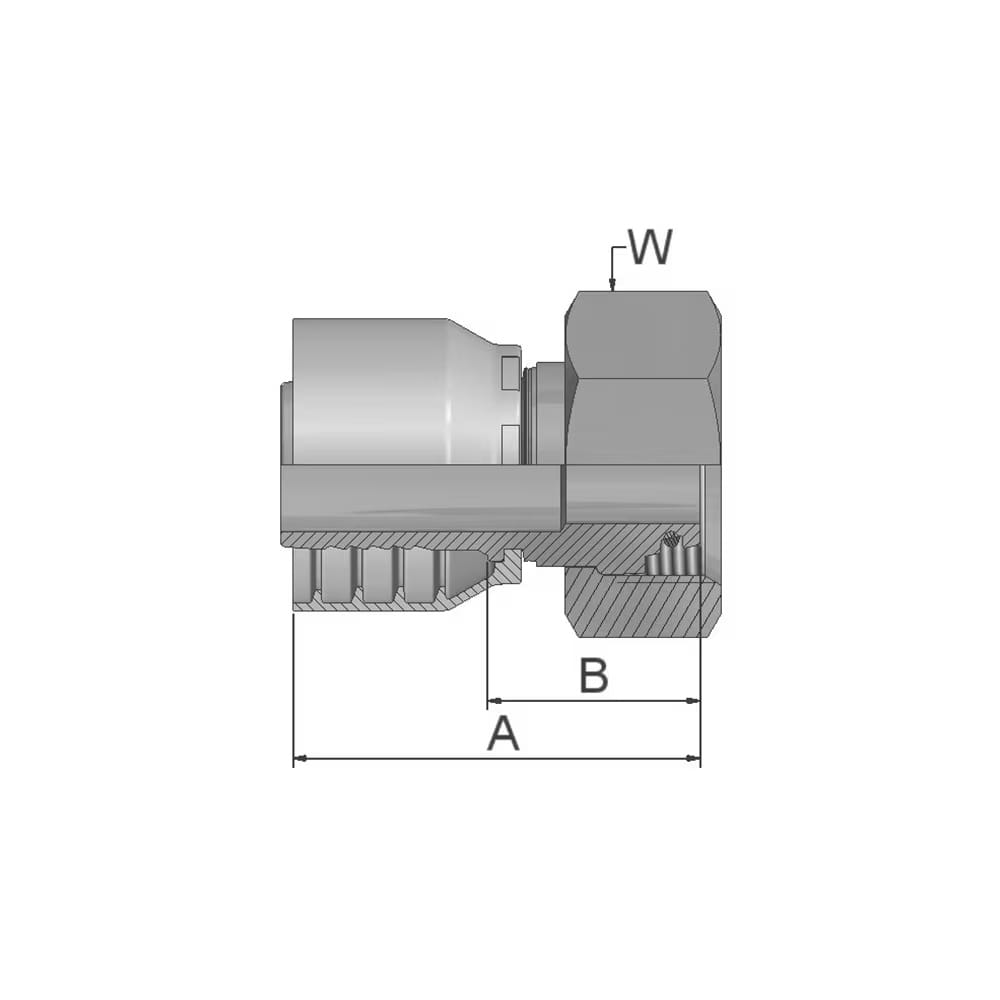

| Part Number | Hose I.D. | Thread | Tube O.D. | A | B | W | ||||
| 46 | 48 | DN | Inch | Size | mm | Metric | mm | mm | mm | mm |
| 1C946-6-4 | 6 | 1/4 | -4 | 6.4 | M14X1.5 | 6 | 48 | 26 | 17 | |
| 1C948-6-4 | 6 | 1/4 | -4 | 6.4 | M14X1.5 | 6 | 49 | 26 | 17 | |
| 1C946-8-4 | 1C948-8-4 | 6 | 1/4 | -4 | 6.4 | M16X1.5 | 8 | 47 | 23 | 19 |
| 1C946-10-4 | 1C948-10-4 | 6 | 1/4 | -4 | 6.4 | M18X1.5 | 10 | 46 | 22 | 22 |
| 1C946-12-4 | 1C948-12-4 | 6 | 1/4 | -4 | 6.4 | M20X1.5 | 12 | 47 | 24 | 24 |
| 1C946-14-4 | 1C948-14-4 | 6 | 1/4 | -4 | 6.4 | M22X1.5 | 14 | 48 | 24 | 27 |
| 1C946-8-5 | 1C948-8-5 | 8 | 5/16 | -5 | 7.9 | M16X1.5 | 8 | 46 | 23 | 19 |
| 1C946-10-5 | 1C948-10-5 | 8 | 5/16 | -5 | 7.9 | M18X1.5 | 10 | 46 | 22 | 22 |
| 1C946-12-5 | 1C948-12-5 | 8 | 5/16 | -5 | 7.9 | M20X1.5 | 12 | 48 | 24 | 24 |
| 1C946-14-5 | 1C948-14-5 | 8 | 5/16 | -5 | 7.9 | M22X1.5 | 14 | 48 | 24 | 27 |
| 1C946-16-5 | 1C948-16-5 | 8 | 5/16 | -5 | 7.9 | M24X1.5 | 16 | 52 | 28 | 30 |
| 1C946-8-6 | 1C948-8-6 | 10 | 3/8 | -6 | 9.5 | M16X1.5 | 8 | 49 | 26 | 19 |
| 1C946-10-6 | 1C948-10-6 | 10 | 3/8 | -6 | 9.5 | M18X1.5 | 10 | 45 | 22 | 22 |
| 1C946-12-6 | 1C948-12-6 | 10 | 3/8 | -6 | 9.5 | M20X1.5 | 12 | 47 | 24 | 24 |
| 1C946-14-6 | 1C948-14-6 | 10 | 3/8 | -6 | 9.5 | M22X1.5 | 14 | 47 | 24 | 27 |
| 1C946-16-6 | 1C948-16-6 | 10 | 3/8 | -6 | 9.5 | M24X1.5 | 16 | 50 | 28 | 30 |
| 1C946-12-8 | 1C948-12-8 | 12 | 1/2 | -8 | 12.7 | M20X1.5 | 12 | 51 | 28 | 24 |
| 1C946-14-8 | 1C948-14-8 | 12 | 1/2 | -8 | 12.7 | M22X1.5 | 14 | 48 | 24 | 27 |
| 1C946-16-8 | 1C948-16-8 | 12 | 1/2 | -8 | 12.7 | M24X1.5 | 16 | 51 | 28 | 30 |
| 1C946-20-8 | 1C948-20-8 | 12 | 1/2 | -8 | 12.7 | M30X2 | 20 | 53 | 29 | 36 |
| 1C946-16-10 | 1C948-16-20 | 16 | 5/8 | -10 | 15.9 | M24X1.5 | 16 | 53 | 28 | 30 |
| 1C946-20-10 | 1C948-20-10 | 16 | 5/8 | -10 | 15.9 | M30X2 | 20 | 53 | 28 | 36 |
| 1C948-12-12 | 19 | 3/4 | -12 | 19.1 | M20X1.5 | 12 | 53 | 28 | 24 | |
| 1C948-16-12 | 19 | 3/4 | -12 | 19.1 | M24X1.5 | 16 | 55 | 29 | 30 | |
| 1C946-20-12 | 1C948-20-12 | 19 | 3/4 | -12 | 19.1 | M30X2 | 20 | 56 | 30 | 36 |
| 1C946-25-12 | 1C948-25-12 | 19 | 3/4 | -12 | 19.1 | M36X2 | 25 | 61 | 35 | 46 |
| 1C946-25-16 | 1C948-25-16 | 25 | 1 | -16 | 25.4 | M36X2 | 25 | 63 | 33 | 46 |
| 1C946-30-16 | 1C948-30-16 | 25 | 1 | -16 | 25.4 | M42X2 | 30 | 67 | 38 | 50 |
| 1C948-25-20 | 31 | 1 1/4 | -20 | 31.8 | M36X2 | 25 | 81 | 34 | 46 | |
| 1C946-38-20 | 31 | 1 1/4 | -20 | 31.8 | M52x2 | 38 | 74 | 36 | 60 | |
| 1C948-38-20 | 31 | 1 1/4 | -20 | 31.8 | M52x2 | 38 | 80 | 33 | 60 |
