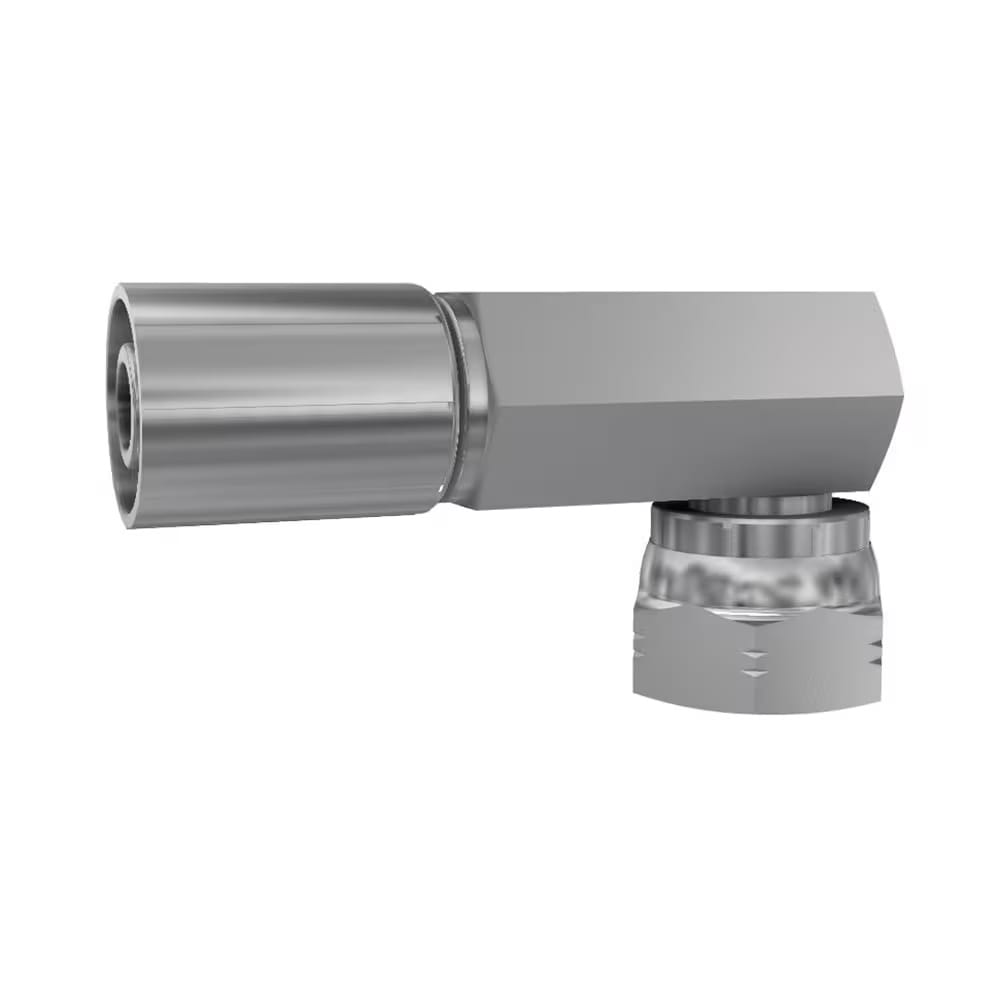

Parker 1B448 / 1B446 Female BSPP Swivel – 90 degree compact
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female BSP Parallel Pipe
- Swivel – 90 degree compact (60° Cone)
- BS 5200-E-DKR 90°
- Material: Steel, zinc plated

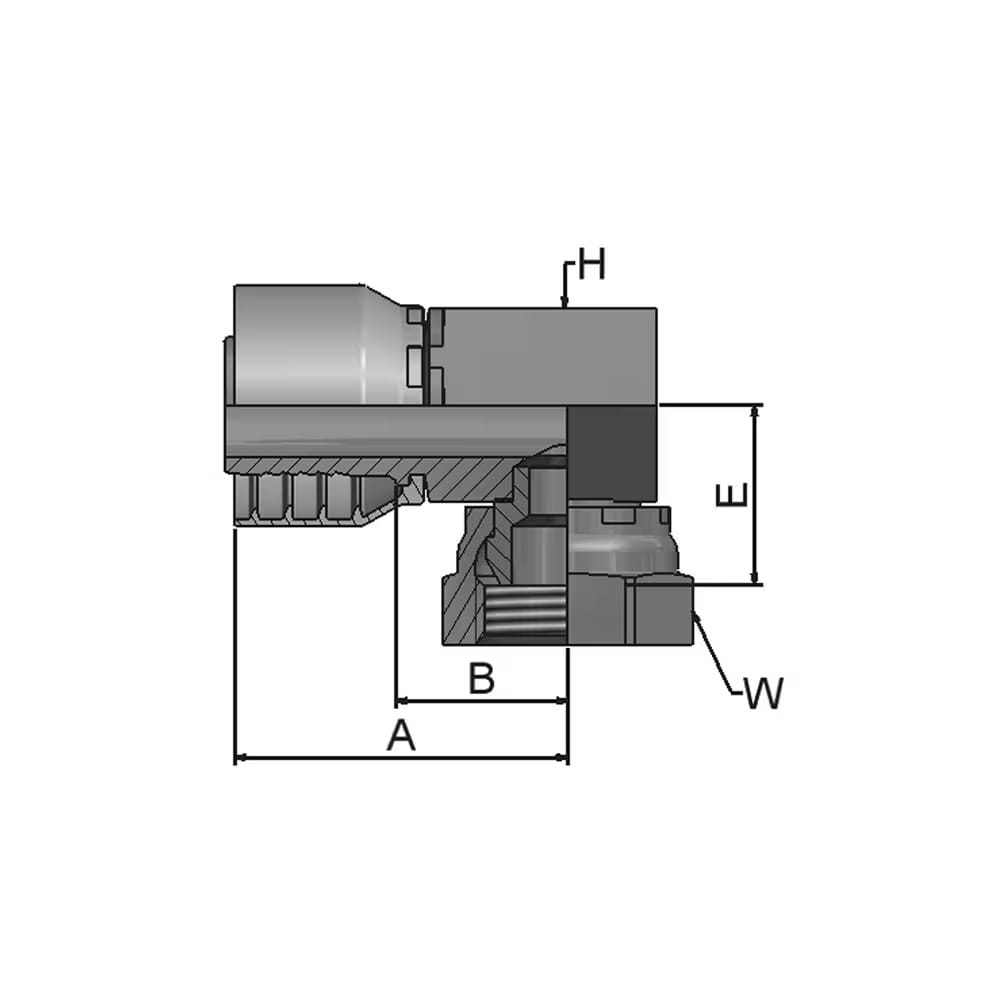

| Part Number | Hose I.D. | Thread | A | B | E | H | W | ||||
| 46 | 48 | DN | Inch | Size | mm | BSP | mm | mm | mm | mm | mm |
| 1B446-4-4 | 1B448-4-4 | 6 | 1/4 | -4 | 6.4 | 1/4×19 | 58 | 34 | 22 | 17 | 19 |
| 1B446-6-4 | 1B448-6-4 | 6 | 1/4 | -4 | 6.4 | 3/8X19 | 43 | 20 | 22 | 17 | 22 |
| 1B446-6-6 | 1B448-6-6 | 10 | 3/8 | -6 | 9.5 | 3/8X19 | 68 | 45 | 23 | 19 | 22 |
| 1B446-8-6 | 1B448-8-6 | 10 | 3/8 | -6 | 9.5 | 1/2X14 | 67 | 44 | 27 | 22 | 27 |
| 1B446-8-8 | 1B448-8-8 | 12 | 1/2 | -8 | 12.7 | 1/2X14 | 67 | 43 | 27 | 22 | 27 |
| 1B446-10-10 | 1B448-10-10 | 16 | 5/8 | -10 | 15.9 | 5/8X14 | 69 | 44 | 27 | 27 | 30 |
| 1B446-12-12 | 1B448-12-12 | 19 | 3/4 | -12 | 19.1 | 3/4X14 | 72 | 47 | 33 | 32 | 32 |
| 1B446-16-16 | 1B448-16-16 | 25 | 1 | -16 | 25.4 | 1X11 | 82 | 52 | 34 | 36 | 41 |
