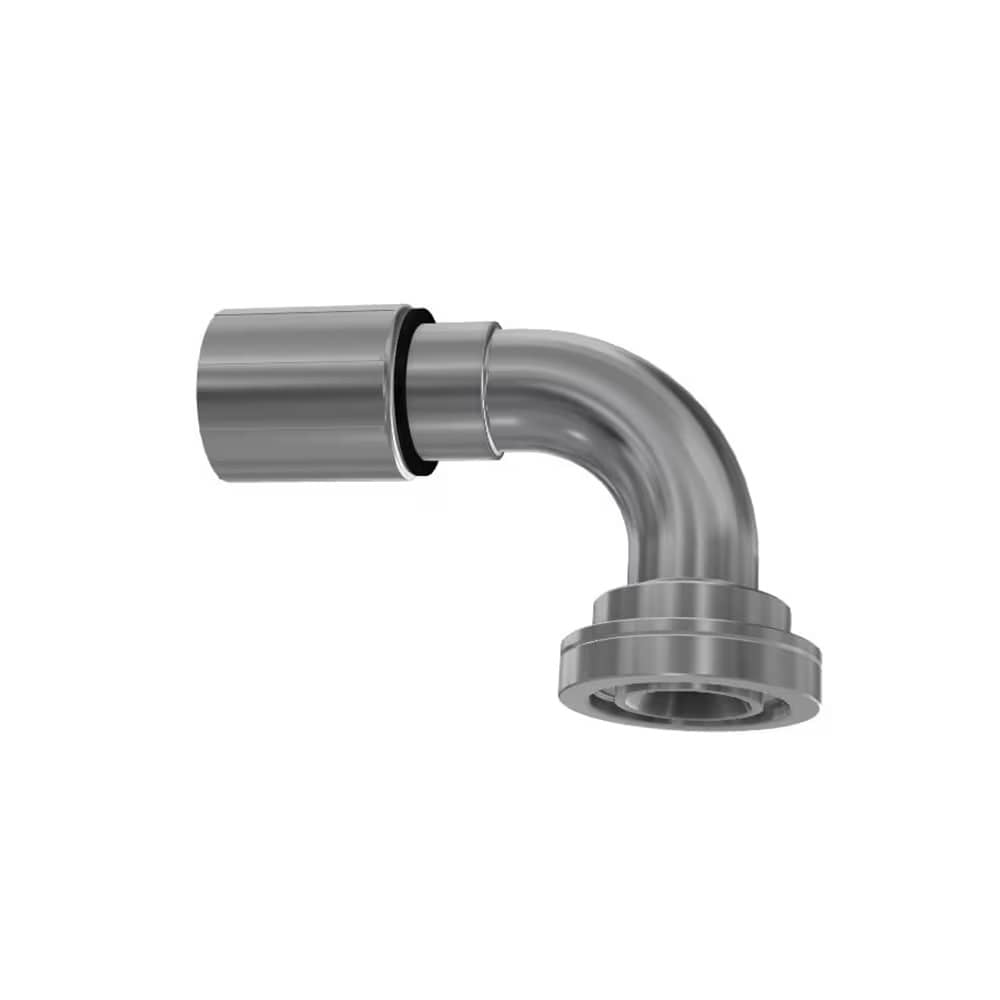

Parker 16N48 / 16N46 Flange – 90 degree
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Flange ISO 6162-2
- 90 degree
- ISO 12151-3-E-S-SFS 90°
- 42.0 MPa / 6000 psi
- Material: Steel, zinc plated

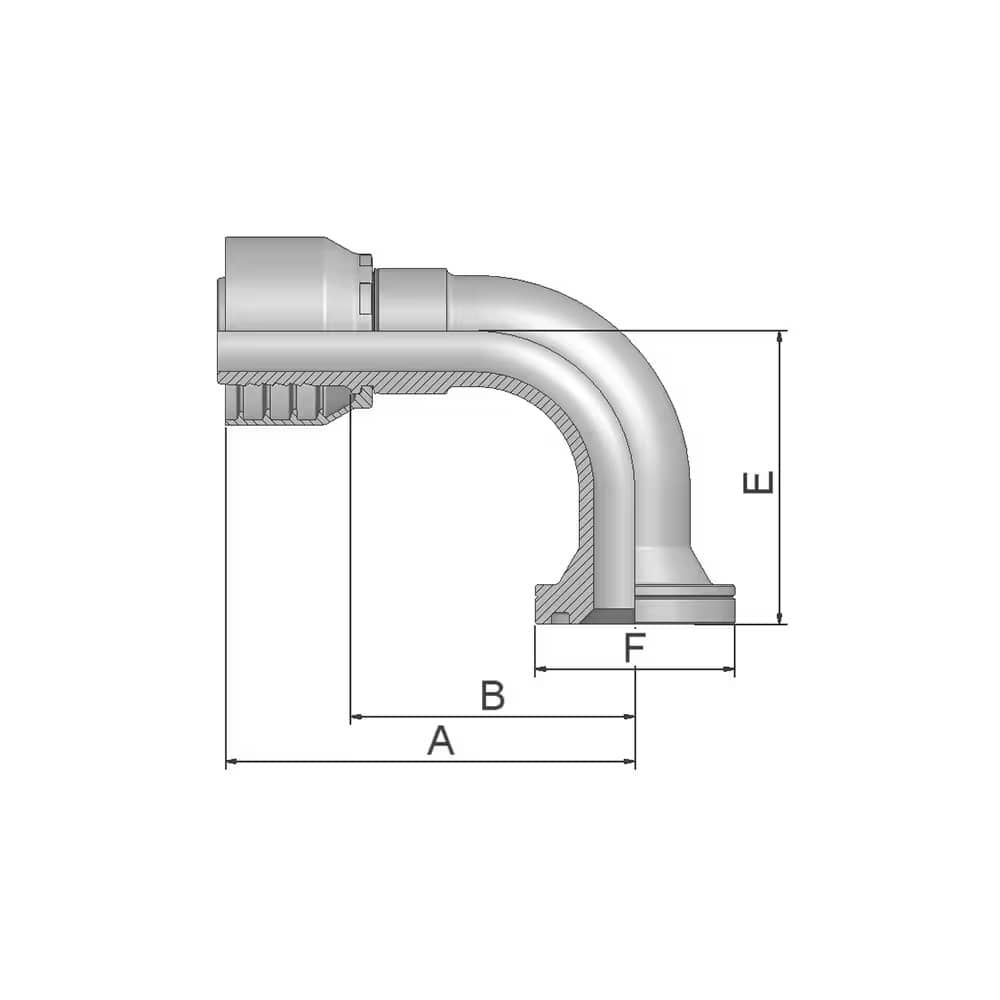

| Part Number | Hose I.D. | Flange | A | B | E | F | ||||
| 46 | 48 | DN | Inch | Size | mm | Inch | mm | mm | mm | mm |
| 16N46-8-12 | 16N48-8-12 | 19 | 3/4 | -12 | 19.1 | 1/2 | 70 | 44 | 40 | 32 |
| 16N46-12-12 | 16N48-12-12 | 19 | 3/4 | -12 | 19.1 | 3/4 | 80 | 54 | 54 | 41 |
| 16N46-16-12 | 16N48-16-12 | 19 | 3/4 | -12 | 19.1 | 1 | 80 | 54 | 53 | 48 |
| 16N46-12-16 | 16N48-12-16 | 25 | 1 | -16 | 25.4 | 3/4 | 88 | 58 | 70 | 41 |
| 16N46-16-16 | 16N48-16-16 | 25 | 1 | -16 | 25.4 | 1 | 98 | 68 | 70 | 48 |
| 16N46-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4 | 124 | 86 | 90 | 54 | |
| 16N48-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4 | 129 | 82 | 90 | 54 | |
| 16N48-24-24 | 38 | 1 1/2 | -24 | 38.1 | 1 1/2 | 139 | 101 | 104 | 64 | |
| 16N48-32-32 | 51 | 2 | -32 | 50.8 | 2 | 186 | 138 | 138 | 79 |
