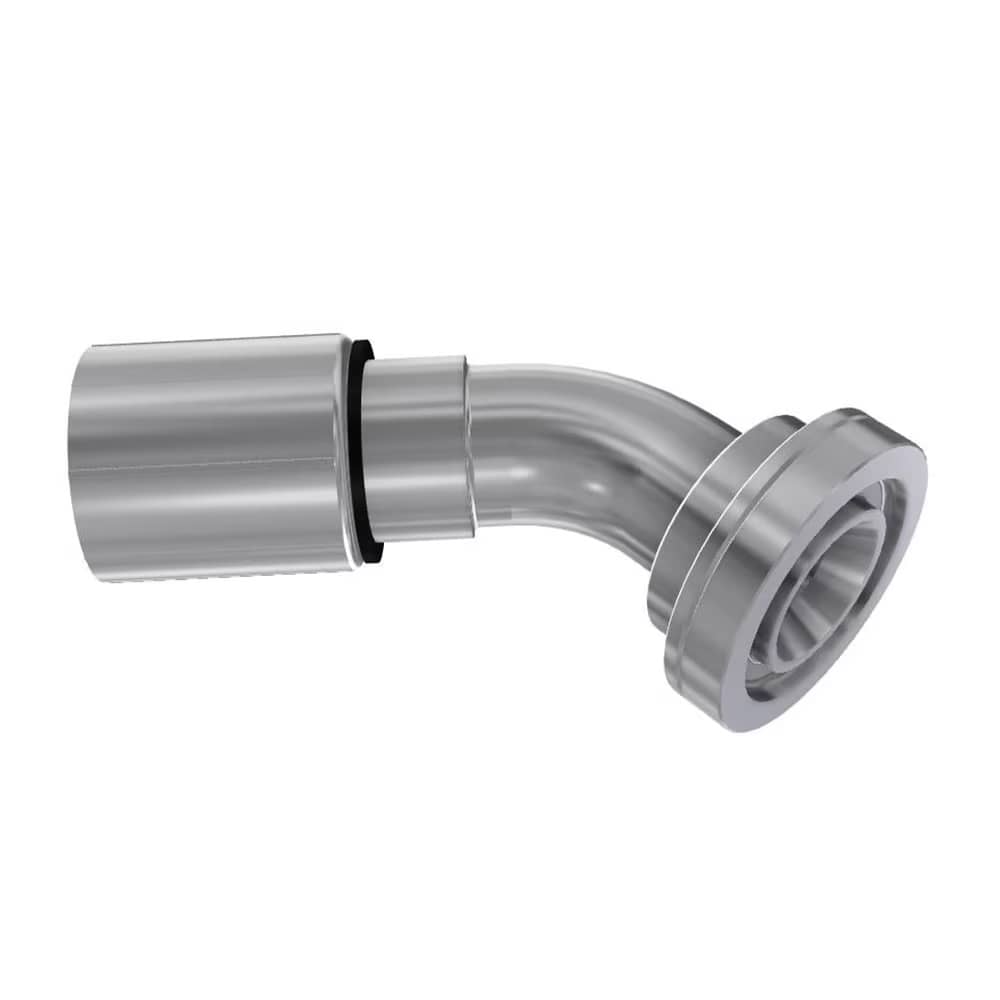

Parker 16F48 / 16F46 Flange – 45 degree
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Flange ISO 6162-2
- 45 degree
- ISO 12151-3-E45-s-SFS 45°
- 42.0 MPa / 6000 psi
- Material: Steel, zinc plated
| Part Number | Hose I.D. | Flange | A | B | E | F | ||||
| 46 | 48 | DN | Inch | Size | mm | Inch | mm | mm | mm | mm |
| 16F46-12-12 | 16F48-12-12 | 19 | 3/4 | -12 | 19.1 | 3/4 | 88 | 62 | 26 | 41 |
| 16F46-16-16 | 16F48-16-16 | 25 | 1 | -16 | 25.4 | 1 | 107 | 78 | 32 | 48 |
| 16F48-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4 | 141 | 94 | 38 | 54 | |
| 16F48-24-24 | 38 | 1 1/2 | -24 | 38.1 | 1 1/2 | 150 | 112 | 44 | 64 | |
| 16F48-32-32 | 51 | 2 | -32 | 50.8 | 2 | 200 | 152 | 56 | 79 |
