Parker 139/3W48 / 139/3W46 Female JIC Swivel – 90 degree

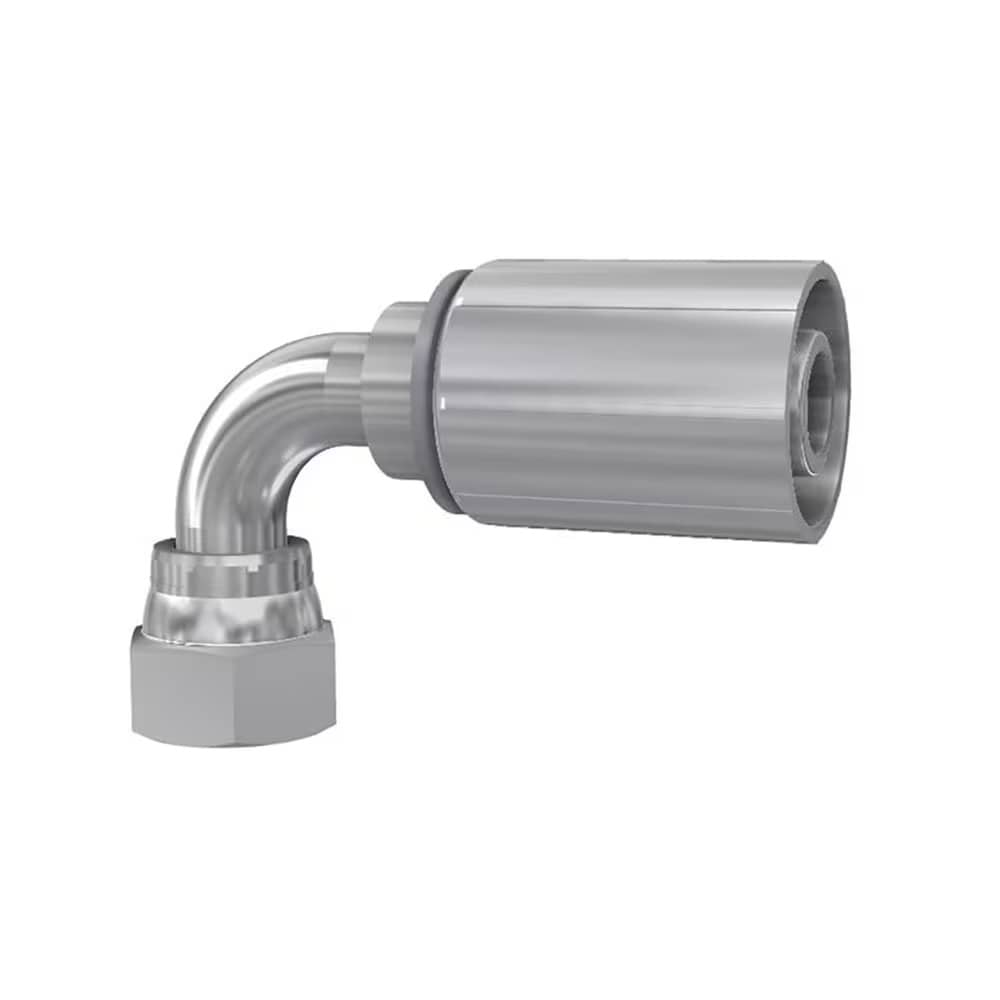

Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female JIC 37°
- Swivel – 90 degree
- ISO 12151-5-SWES-DKJ 90°
- Material: Steel, zinc plated

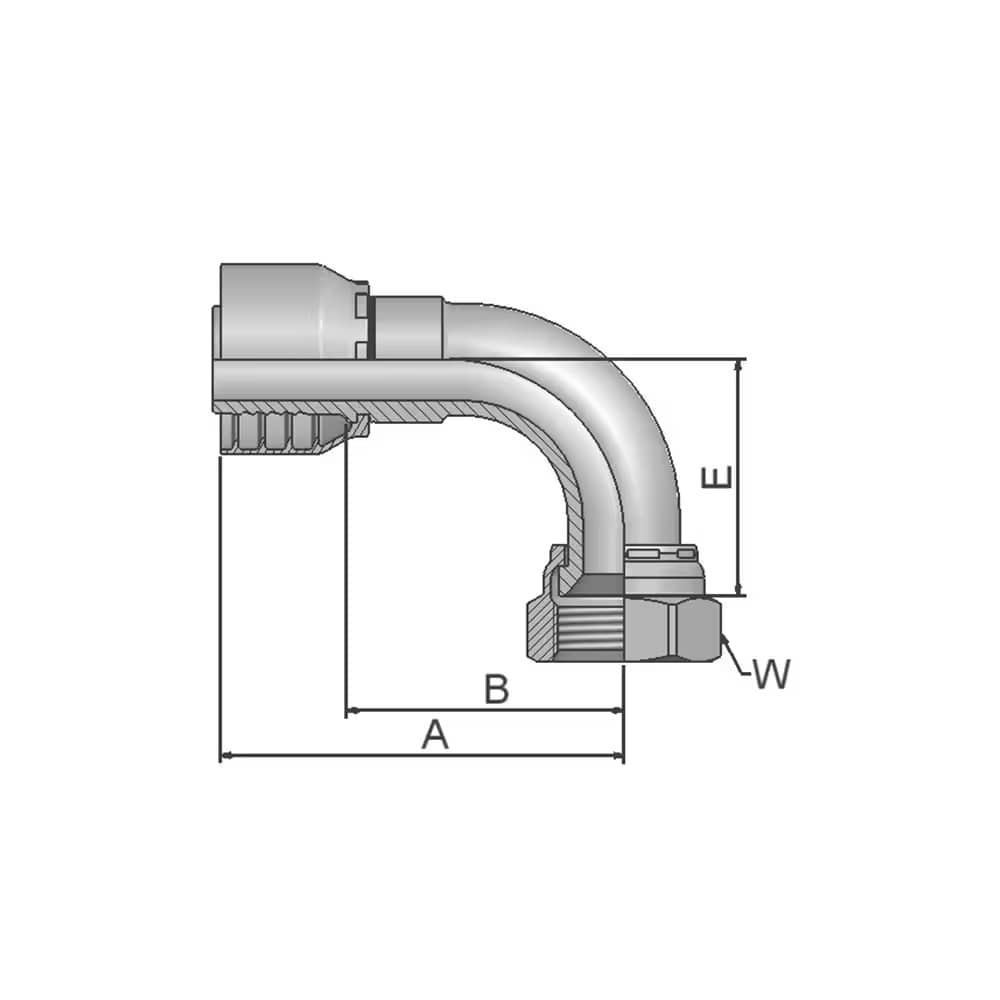

| Part Number | Hose I.D. | Thread | A | B | E | W | ||||
| 46 | 48 | DN | Inch | Size | mm | UNF | mm | mm | mm | mm |
| 13W46-4-4 | 13W48-4-4 | 6 | 1/4 | -4 | 6.4 | 7/16×20 | 48 | 24 | 21 | 17 |
| 13W46-5-4 | 13W48-5-4 | 6 | 1/4 | -4 | 6.4 | 1/2×20 | 57 | 34 | 21 | 17 |
| 13946-6-4 | 13948-6-4 | 6 | 1/4 | -4 | 6.4 | 9/16×18 | 49 | 25 | 23 | 19 |
| 13W46-5-5 | 13W48-5-5 | 8 | 5/16 | -5 | 7.9 | 1/2×20 | 49 | 25 | 21 | 17 |
| 13946-6-5 | 13948-6-5 | 8 | 5/16 | -5 | 7.9 | 9/16×18 | 51 | 28 | 23 | 19 |
| 13W46-4-6 | 13W48-4-6 | 10 | 3/8 | -6 | 9.5 | 7/16×20 | 46 | 23 | 21 | 17 |
| 13946-6-6 | 13948-6-6 | 10 | 3/8 | -6 | 9.5 | 9/16×18 | 51 | 28 | 23 | 19 |
| 13W46-8-6 | 13W48-8-6 | 10 | 3/8 | -6 | 9.5 | 3/4×16 | 59 | 36 | 29 | 22 |
| 13W46-10-6 | 13W48-10-6 | 10 | 3/8 | -6 | 9.5 | 7/8×14 | 61 | 38 | 32 | 27 |
| 13946-6-8 | 13948-6-8 | 12 | 1/2 | -8 | 12.7 | 9/16×18 | 54 | 30 | 23 | 19 |
| 13W46-8-8 | 13W48-8-8 | 12 | 1/2 | -8 | 12.7 | 3/4×16 | 55 | 31 | 29 | 22 |
| 13W46-10-8 | 13W48-10-8 | 12 | 1/2 | -8 | 12.7 | 7/8×14 | 63 | 39 | 32 | 27 |
| 13W46-10-10 | 13W48-10-10 | 16 | 5/8 | -10 | 15.9 | 7/8×14 | 64 | 39 | 33 | 27 |
| 13946-12-10 | 13948-12-10 | 16 | 5/8 | -10 | 15.9 | 1 1/16×12 | 74 | 49 | 48 | 32 |
| 13946-12-12 | 13948-12-12 | 19 | 3/4 | -12 | 19.1 | 1 1/16×12 | 80 | 54 | 48 | 32 |
| 13946-14-12 | 13948-14-12 | 19 | 3/4 | -12 | 19.1 | 1 3/16×12 | 80 | 54 | 51 | 36 |
| 13946-16-12 | 13948-16-12 | 19 | 3/4 | -12 | 19.1 | 1 5/16×12 | 80 | 54 | 56 | 41 |
| 13946-12-16 | 13948-12-16 | 25 | 1 | -16 | 25.4 | 1 1/16×12 | 87 | 58 | 48 | 32 |
| 13946-16-16 | 13948-16-16 | 25 | 1 | -16 | 25.4 | 1 5/16×12 | 98 | 68 | 56 | 41 |
| 13946-20-16 | 13948-20-16 | 25 | 1 | -16 | 25.4 | 1 5/8×12 | 98 | 68 | 62 | 50 |
| 13946-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 5/8×12 | 124 | 86 | 70 | 50 | |
| 13948-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 5/8×12 | 129 | 82 | 70 | 50 | |
| 13948-24-24 | 38 | 1 1/2 | -24 | 38.1 | 1 7/8×12 | 140 | 102 | 91 | 60 |
