Parker 1202LT Hydraulic Hose
Product
1202LT – Low temperature hose
Core tube: Polyester elastomer.
Core tube: Polyester elastomer.

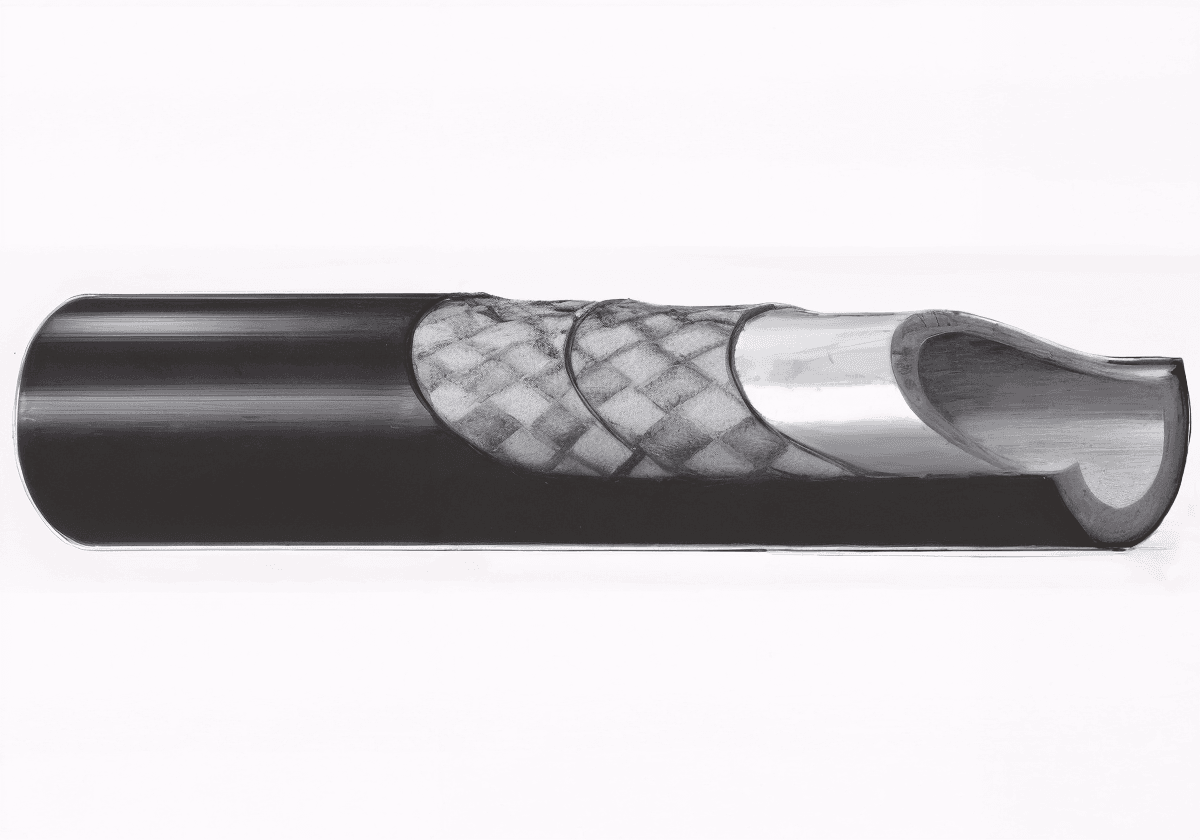

Construction
Reinforcement: one or two braided layers of high tensile synthetic fibre.
Cover: Special polyester, black, pinpricked.
Cover: Special polyester, black, pinpricked.
Recommended fluids
-
Operating temperature
From -57°C to +100°C for petroleum, max. 57°C for synthetic hydraulic fluids and water-based hydraulic fluids.
Burst pressure
-
Applicable specifications
-
Fitting series
56
Applications
Medium pressure service for use with petroleum, synthetic or water based hydraulic fluids in hydraulic systems. Ideal for use at low temperature, e.g. fork-lift trucks in refrigerated warehouses, earthmoving and agricultural machinery for cold climates.
Advantages
Constant operating pressure for all sizes.
Benefits
Low temperature environments. One hose type for all sizes on a machine.
| Part number | Hose Inside Diameter DN | Hose Inside Diameter inch | Hose Inside Diameter Size | Hose Inside Diameter mm | Outside Diameter mm | Operating Pressure psi |
| 1202LT-3 | 5 | 3/16 | -03 | 4.8 | 10.7 | 3000 |
| 1202LT-4 | 6 | 1/4 | -04 | 6.4 | 12.6 | 3000 |
| 1202LT-5 | 8 | 5/16 | -05 | 8.0 | 14.4 | 3000 |
| 1202LT-6 | 10 | 3/8 | -06 | 10.0 | 16.4 | 3000 |
