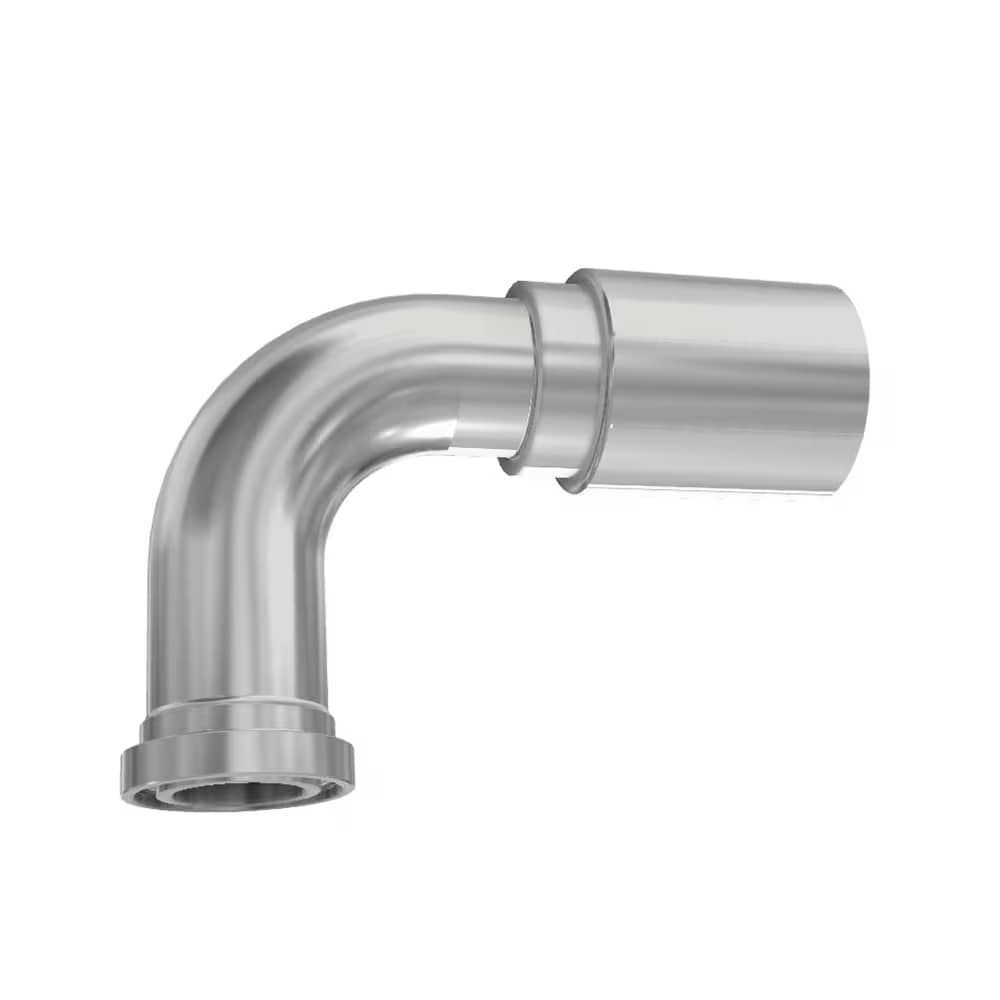

Parker 11948 / 11946 Flange – 90 degree
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Flange ISO 6162-1
- 90 degree
- ISO 12151-3-E-L-SFL 90°
- 21.0 MPa / 3000 psi
- Material: Steel, zinc plated

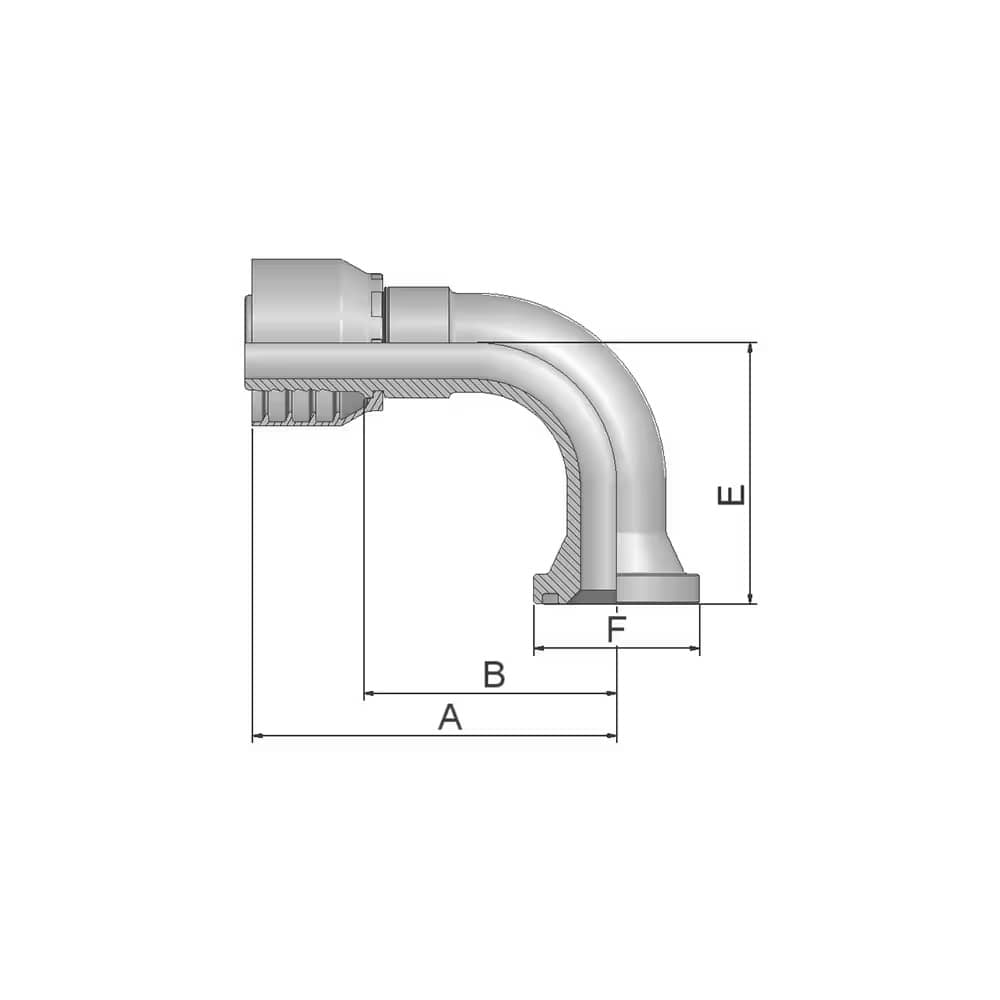

| Part Number | Hose I.D. | Flange | A | B | E | F | ||||
| 46 | 48 | DN | Inch | Size | mm | Inch | mm | mm | mm | mm |
| 11946-8-8 | 11948-8-8 | 12 | 1/2 | -8 | 12.7 | 1/2 | 64 | 41 | 41 | 30 |
| 11946-12-8 | 11948-12-8 | 12 | 1/2 | -8 | 12.7 | 3/4 | 70 | 47 | 43 | 38 |
| 11946-12-10 | 11948-12-10 | 16 | 5/8 | -10 | 15.9 | 3/4 | 78 | 53 | 52 | 38 |
| 11946-16-10 | 11948-16-10 | 16 | 5/8 | -10 | 15.9 | 1 | 78 | 53 | 53 | 45 |
| 11946-12-12 | 11948-12-12 | 19 | 3/4 | -12 | 19.1 | 3/4 | 80 | 54 | 58 | 38 |
| 11946-16-12 | 11948-16-12 | 19 | 3/4 | -12 | 19.1 | 1 | 80 | 54 | 58 | 45 |
| 11946-20-12 | 11948-20-12 | 19 | 3/4 | -12 | 19.1 | 1 1/4 | 80 | 54 | 54 | 51 |
| 11946-12-16 | 11948-12-16 | 25 | 1 | -16 | 25.4 | 3/4 | 98 | 68 | 70 | 38 |
| 11946-16-16 | 11948-16-16 | 25 | 1 | -16 | 25.4 | 1 | 98 | 68 | 70 | 45 |
| 11946-20-16 | 11948-20-16 | 25 | 1 | -16 | 25.4 | 1 1/4 | 98 | 68 | 69 | 51 |
| 11948-24-16 | 25 | 1 | -16 | 25.4 | 1 1/2 | 100 | 70 | 62 | 60 | |
| 11948-16-20 | 31 | 1 1/4 | -20 | 31.8 | 1 | 129 | 82 | 90 | 45 | |
| 11946-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4 | 124 | 86 | 90 | 51 | |
| 11948-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4 | 130 | 83 | 90 | 51 | |
| 11946-24-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/2 | 124 | 86 | 90 | 60 | |
| 11948-24-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/2 | 129 | 82 | 90 | 60 | |
| 11948-32-20 | 31 | 1 1/4 | -20 | 31.8 | 2 | 130 | 83 | 67 | 71 | |
| 11948-24-24 | 38 | 1 1/2 | -24 | 38.1 | 1 1/2 | 149 | 111 | 104 | 60 | |
| 11948-32-24 | 38 | 1 1/2 | -24 | 38.1 | 2 | 139 | 101 | 104 | 71 | |
| 11948-24-32 | 51 | 2 | -32 | 50.8 | 1 1/2 | 154 | 106 | 104 | 60 | |
| 11948-32-32 | 51 | 2 | -32 | 50.8 | 2 | 180 | 132 | 138 | 71 |
