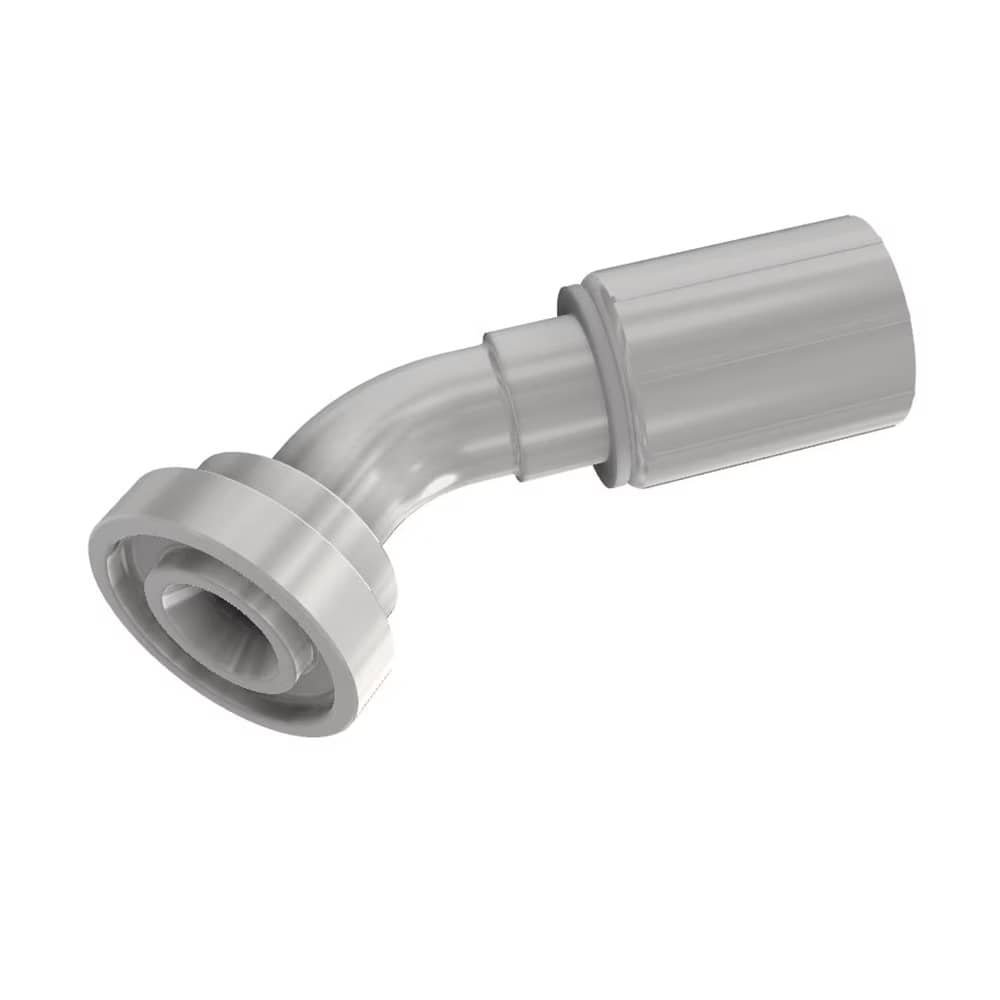

Parker 11748 / 11746 Flange – 45 degree
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Flange ISO 6162-1
- 45 degree
- ISO 12151-3-E45-L-SFL 45°
- 21.0 MPa / 3000 PSI
- Material: Steel, zinc plated

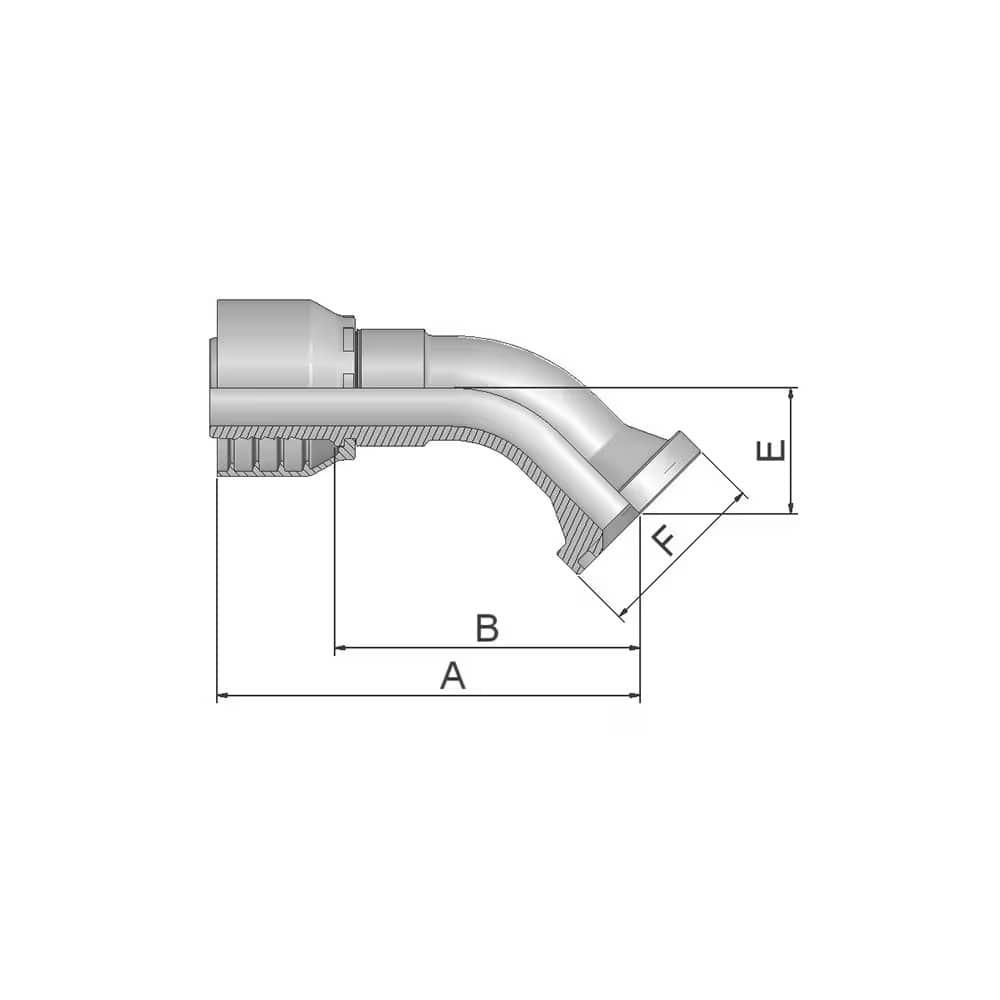

| Part Number | Hose I.D. | Flange | A | B | E | F | ||||
| 46 | 48 | DN | Inch | Size | mm | Inch | mm | mm | mm | mm |
| 11746-8-8 | 11748-8-8 | 12 | 1/2 | -8 | 12.7 | 1/2 | 72 | 48 | 20 | 30 |
| 11746-12-8 | 11748-12-8 | 12 | 1/2 | -8 | 12.7 | 3/4 | 70 | 47 | 21 | 38 |
| 11746-12-10 | 11748-12-10 | 16 | 5/8 | -10 | 15.9 | 3/4 | 75 | 50 | 24 | 38 |
| 11746-12-12 | 11748-12-12 | 19 | 3/4 | -12 | 19.1 | 3/4 | 88 | 62 | 26 | 38 |
| 11746-16-12 | 11748-16-12 | 19 | 3/4 | -12 | 19.1 | 1 | 88 | 62 | 26 | 45 |
| 11746-20-12 | 11748-20-12 | 19 | 3/4 | -12 | 19.1 | 1 1/4 | 87 | 61 | 25 | 51 |
| 11746-16-16 | 25 | 1 | -16 | 25.4 | 1 | 109 | 78 | 32 | 45 | |
| 11748-16-16 | 25 | 1 | -16 | 25.4 | 1 | 107 | 78 | 32 | 45 | |
| 11746-20-16 | 11748-20-16 | 25 | 1 | -16 | 25.4 | 1 1/4 | 109 | 79 | 32 | 51 |
| 11748-16-20 | 31 | 1 1/4 | -20 | 31.8 | 1 | 141 | 94 | 38 | 45 | |
| 11746-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4 | 136 | 98 | 38 | 51 | |
| 11748-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4 | 141 | 94 | 38 | 51 | |
| 11746-24-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/2 | 136 | 98 | 38 | 60 | |
| 11748-24-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/2 | 141 | 94 | 38 | 60 | |
| 11748-24-24 | 38 | 1 1/2 | -24 | 38.1 | 1 1/2 | 151 | 113 | 44 | 60 | |
| 11748-32-24 | 38 | 1 1/2 | -24 | 38.1 | 2 | 150 | 112 | 44 | 71 | |
| 11748-24-32 | 51 | 2 | -32 | 50.8 | 1 1/2 | 164 | 115 | 44 | 60 | |
| 11748-32-32 | 51 | 2 | -32 | 50.8 | 2 | 202 | 153 | 56 | 71 |
