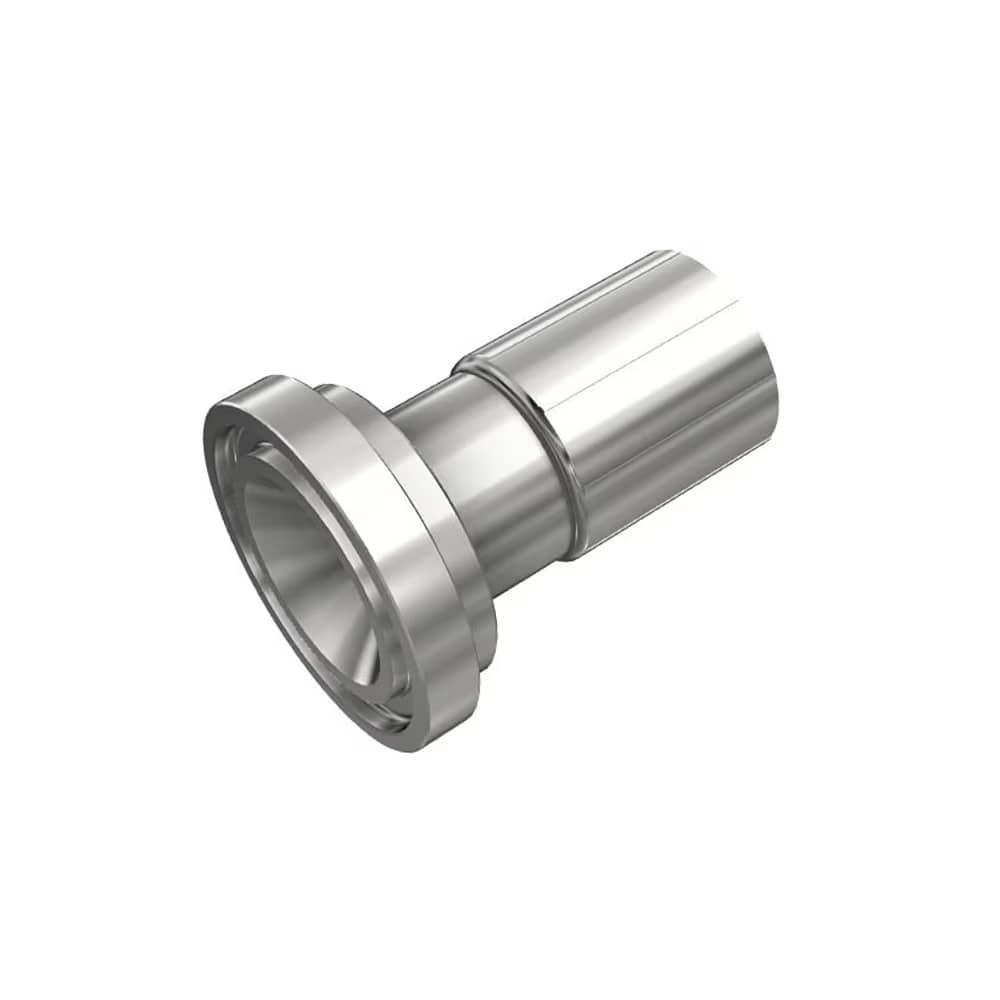

Parker 11548 / 11546 Flange – Straight
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Flange ISO 6162-1
- Straight
- ISO 12151-3-S-L-SFL
- 21.0 MPa / 3000 psi
- Material: Steel, zinc plated

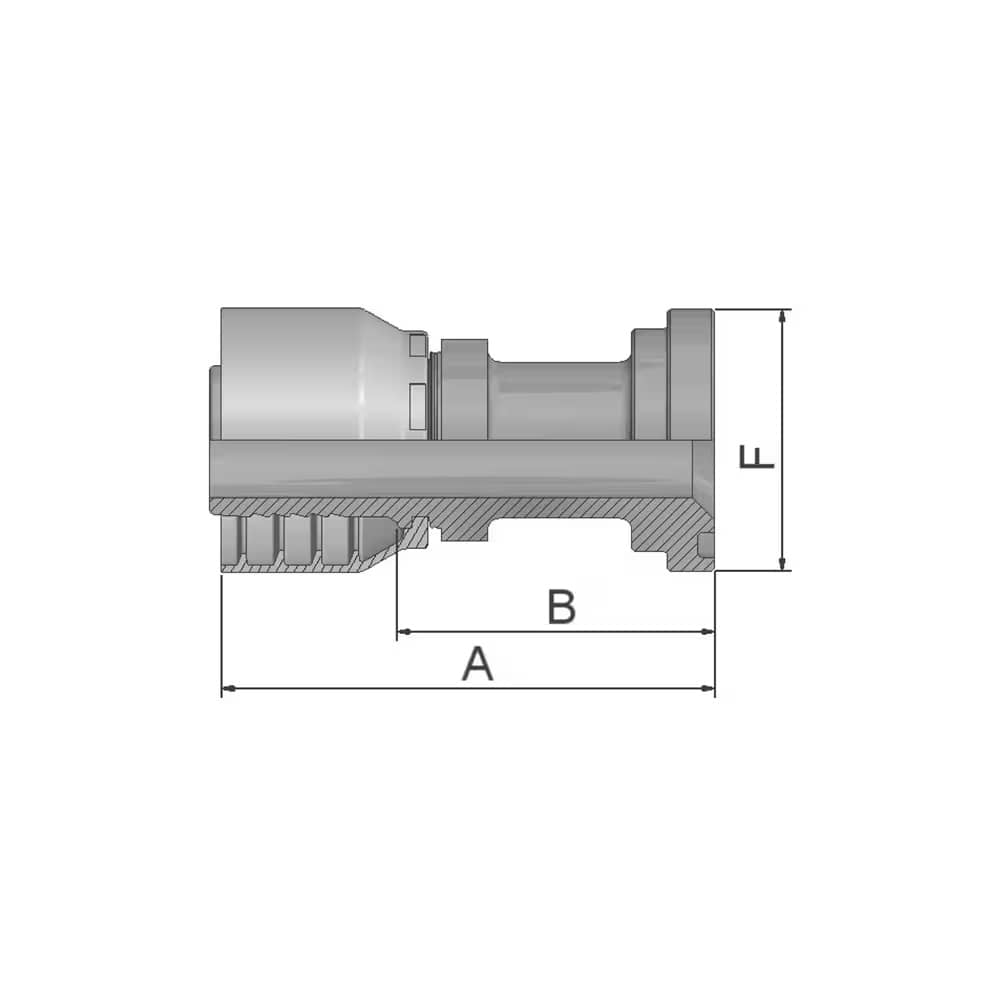

| Part Number | Hose I.D. | Flange | A | B | F | ||||
| 46 | 48 | DN | Inch | Size | mm | Inch | mm | mm | mm |
| 11546-8-8 | 11548-8-8 | 12 | 1/2 | -8 | 12.7 | 1/2 | 74 | 50 | 30 |
| 11546-12-8 | 11548-12-8 | 12 | 1/2 | -8 | 12.7 | 3/4 | 51 | 27 | 38 |
| 11546-12-10 | 11548-12-10 | 16 | 5/8 | -10 | 15.9 | 3/4 | 55 | 30 | 38 |
| 11546-12-12 | 11548-12-12 | 19 | 3/4 | -12 | 19.1 | 3/4 | 81 | 55 | 38 |
| 11546-16-12 | 11548-16-12 | 19 | 3/4 | -12 | 19.1 | 1 | 56 | 30 | 45 |
| 11546-20-12 | 11548-20-12 | 19 | 3/4 | -12 | 19.1 | 1 1/4 | 62 | 36 | 51 |
| 11546-16-16 | 11548-16-16 | 25 | 1 | -16 | 25.4 | 1 | 84 | 54 | 45 |
| 11546-20-16 | 11548-20-16 | 25 | 1 | -16 | 25.4 | 1 1/4 | 65 | 35 | 51 |
| 11546-24-16 | 11548-24-16 | 25 | 1 | -16 | 25.4 | 1 1/2 | 68 | 38 | 60 |
| 11548-16-20 | 31 | 1 1/4 | -20 | 31.8 | 1 | 111 | 64 | 54 | |
| 11546-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4 | 114 | 76 | 51 | |
| 11548-20-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/4 | 119 | 72 | 51 | |
| 11546-24-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/2 | 72 | 35 | 60 | |
| 11548-24-20 | 31 | 1 1/4 | -20 | 31.8 | 1 1/2 | 82 | 35 | 60 | |
| 11548-32-20 | 31 | 1 1/4 | -20 | 31.8 | 2 | 123 | 76 | 71 | |
| 11548-24-24 | 38 | 1 1/2 | -24 | 38.1 | 1 1/2 | 117 | 79 | 60 | |
| 11548-32-24 | 38 | 1 1/2 | -24 | 38.1 | 2 | 80 | 42 | 71 | |
| 11548-24-32 | 51 | 2 | -32 | 50.8 | 1 1/2 | 123 | 81 | 60 | |
| 11548-32-32 | 51 | 2 | -32 | 50.8 | 2 | 127 | 79 | 71 |
