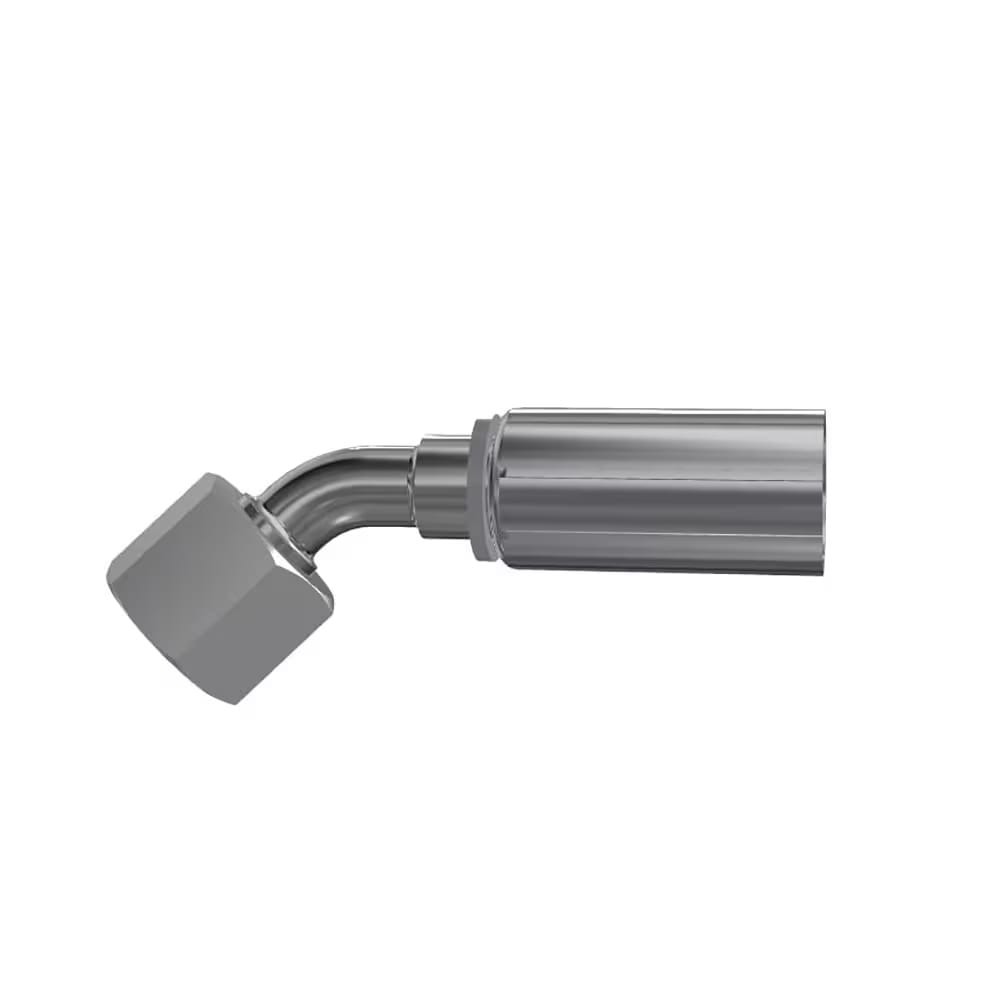

Parker 10C48 / 10C46 Female Metric Heavy Swivel – 45 degree
Parker Parkrimp Medium Pressure Fittings – 48 Series – are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
- Female Metric heavy
- Swivel – 45 degree (24° Cone)
- ISO 12151-2-SWE-S-DKOS 45°
- Material: Steel, zinc plated
| Part Number | Hose I.D. | Thread | Tube O.D. | A | B | E | W | ||||
| 46 | 48 | DN | Inch | Size | mm | Metric | mm | mm | mm | mm | mm |
| 10C46-6-4 | 10C48-6-4 | 6 | 1/4 | -4 | 6.4 | M14X1.5 | 6 | 61 | 38 | 16 | 17 |
| 10C46-8-4 | 10C48-8-4 | 6 | 1/4 | -4 | 6.4 | M16X1.5 | 8 | 59 | 35 | 16 | 19 |
| 10C46-10-4 | 10C48-10-4 | 6 | 1/4 | -4 | 6.4 | M18X1.5 | 10 | 59 | 36 | 16 | 22 |
| 10C46-12-4 | 10C48-12-4 | 6 | 1/4 | -4 | 6.4 | M20X1.5 | 12 | 71 | 48 | 17 | 24 |
| 10C46-10-5 | 10C48-10-5 | 8 | 5/16 | -5 | 7.9 | M18X1.5 | 10 | 62 | 38 | 17 | 22 |
| 10C46-12-5 | 10C48-12-5 | 8 | 5/16 | -5 | 7.9 | M20X1.5 | 12 | 70 | 47 | 17 | 24 |
| 10C46-10-6 | 10C48-10-6 | 10 | 3/8 | -6 | 9.5 | M18X1.5 | 10 | 70 | 47 | 19 | 22 |
| 10C46-12-6 | 10C48-12-6 | 10 | 3/8 | -6 | 9.5 | M20X1.5 | 12 | 69 | 46 | 20 | 24 |
| 10C46-14-6 | 10C48-14-6 | 10 | 3/8 | -6 | 9.5 | M22X1.5 | 14 | 69 | 46 | 20 | 27 |
| 10C46-14-8 | 10C48-14-8 | 12 | 1/2 | -8 | 12.7 | M22X1.5 | 14 | 69 | 46 | 21 | 27 |
| 10C46-16-8 | 10C48-16-8 | 12 | 1/2 | -8 | 12.7 | M24X1.5 | 16 | 72 | 49 | 23 | 30 |
| 10C46-16-10 | 10C48-16-10 | 16 | 5/8 | -10 | 15.9 | M24X1.5 | 16 | 77 | 52 | 24 | 30 |
| 10C46-20-10 | 10C48-20-10 | 16 | 5/8 | -10 | 15.9 | M30X2 | 20 | 76 | 51 | 25 | 36 |
| 10C46-20-12 | 10C48-20-12 | 19 | 3/4 | -12 | 19.1 | M30X2 | 20 | 90 | 64 | 28 | 36 |
| 10C46-25-12 | 10C48-25-12 | 19 | 3/4 | -12 | 19.1 | M36X2 | 25 | 91 | 65 | 29 | 46 |
| 10C48-30-12 | 19 | 3/4 | -12 | 19.1 | M42X2 | 30 | 93 | 67 | 30 | 50 | |
| 10C46-25-16 | 25 | 1 | -16 | 25.4 | M36X2 | 25 | 109 | 80 | 33 | 46 | |
| 10C48-25-16 | 25 | 1 | -16 | 25.4 | M36X2 | 25 | 109 | 80 | 33 | 46 | |
| 10C46-30-16 | 10C48-30-16 | 25 | 1 | -16 | 25.4 | M42X2 | 30 | 115 | 86 | 36 | 50 |
| 10C46-38-20 | 31 | 1 1/4 | -20 | 31.8 | M52x2 | 38 | 136 | 98 | 38 | 60 | |
| 10C48-38-20 | 31 | 1 1/4 | -20 | 31.8 | M52x2 | 38 | 140 | 93 | 37 | 60 | |
| 10C48-38-24 | 38 | 1 1/2 | -24 | 38.1 | M52X2 | 38 | 155 | 117 | 49 | 60 |
