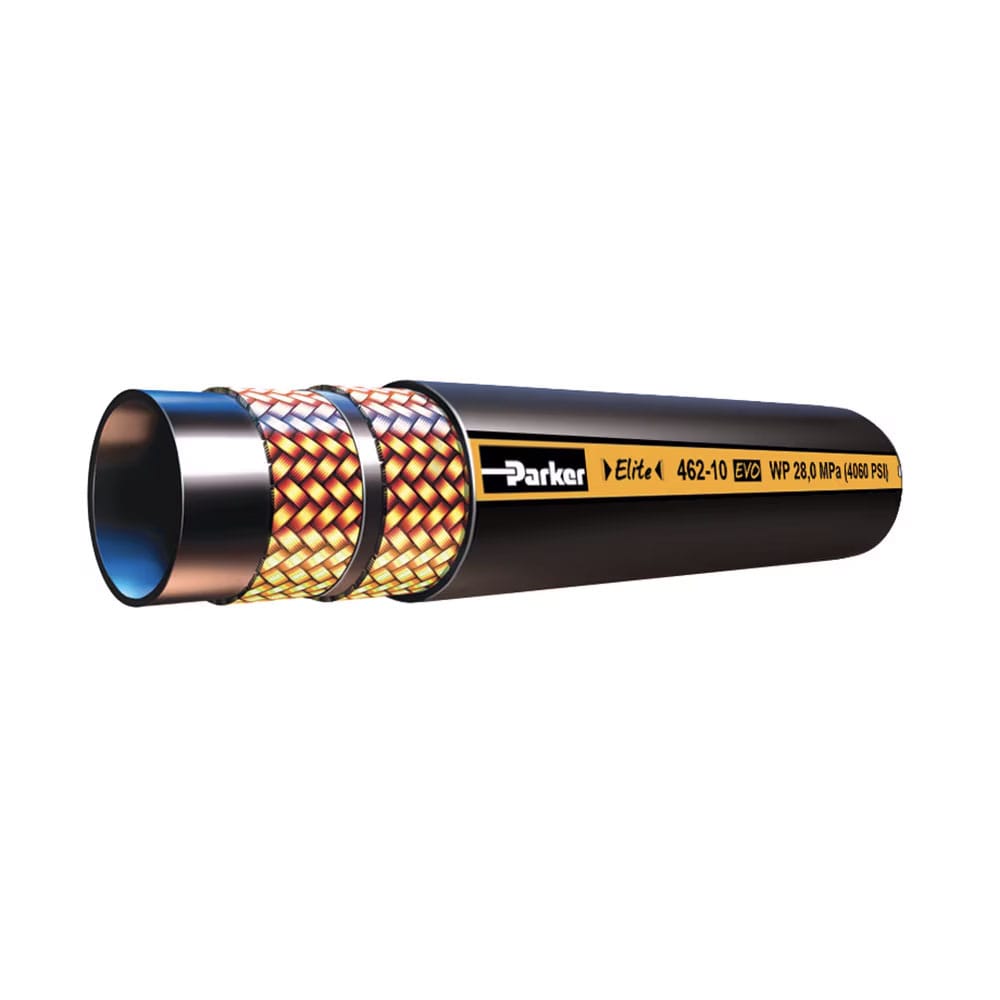

Parker 462 Hydraulic Hose
Product
462 – Elite compact hose – Exceeds EN 857 2SC
Construction: Tube: nitrile (NBR).
Construction: Tube: nitrile (NBR).
Construction
Reinforcement: two high tensile steel wire braids.
Cover: synthetic rubber.
Cover: synthetic rubber.
Recommended fluids
Petroleum and water-glycol based fluids, lubricating oils, air and water. For air above 1.7 MPa, the hose cover must be pinpricked.
Operating temperature:
-40°C up to +100°C. (Air max. +70°C, Water max. +85°C).
Burst pressure
Operating pressure x 4
Applicable specifications
EN 857 2SC, ISO 11237-1 type 2SC.
Fitting series
48
Applications
Demanding medium pressure hydraulic applications in all markets.
Advantages
No-Skive hose construction.
Compact design, nitrile (NBR) inner tube.
Compact design, nitrile (NBR) inner tube.
Benefits
Extended fluid compatibility.
Exceeding EN/ISO specifications for pressure, bend radius and abrasion resistance.
Exceeding EN/ISO specifications for pressure, bend radius and abrasion resistance.
| Part number | Hose Inside Diameter DN | Hose Inside Diameter inch | Hose Inside Diameter Size | Hose Inside Diameter mm | Outside Diameter mm | Operating Pressure psi | Operating Pressure Mpa | Bend radius mm |
| 462-4 | 6 | 1/4 | -04 | 6.3 | 13.4 | 6160 | 42.5 | 75 |
| 462-5 | 8 | 5/16 | -05 | 7.9 | 15.0 | 5800 | 40.0 | 85 |
| 462-6 | 10 | 3/8 | -06 | 9.5 | 17.2 | 5075 | 35.0 | 90 |
| 462-8 | 12 | 1/2 | -08 | 12.7 | 20.4 | 4495 | 31.0 | 130 |
| 462-10 | 16 | 5/8 | -10 | 15.9 | 23.9 | 4060 | 28.0 | 160 |
| 462-12 | 20 | 3/4 | -12 | 19.1 | 27.7 | 4060 | 28.0 | 195 |
| 462-16 | 25 | 1 | -16 | 25.4 | 35.4 | 3045 | 21.0 | 250 |
