Parker 441 Hydraulic Hose
Product

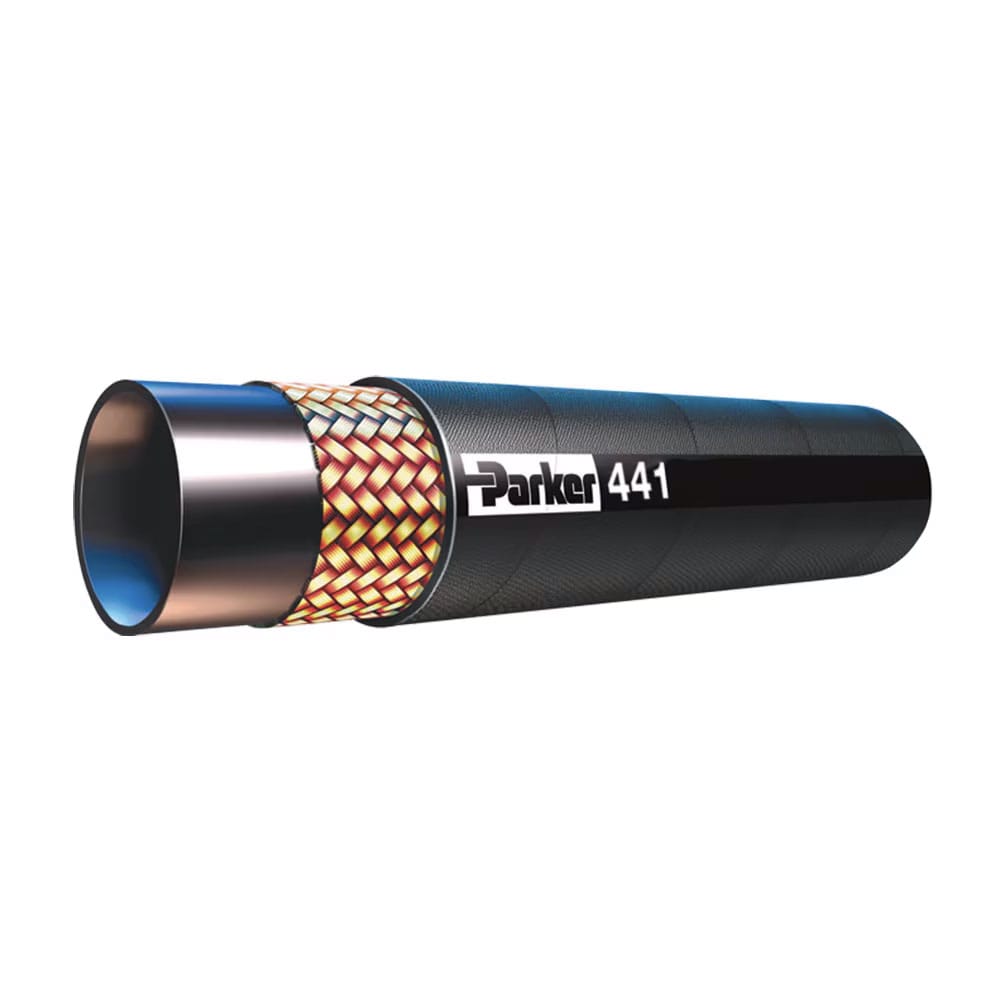

441 – No-Skive compact 1 layer hose
Tube: synthetic rubber.
Tube: synthetic rubber.
Construction
Reinforcement: one steel wire construction.
Cover: synthetic rubber.
Cover: synthetic rubber.
Recommended fluids
Petroleum and water-glycol based fluids, lubricating oils, air and water. For air above 1.7 MPa, the hose cover must be pinpricked.
Operating temperature
-40°C up to +125°C. (Air max. +70°C, Water max. +85°C).
Burst pressure
Operating pressure x 4.
Applicable specifications
ISO 11237 R16 – SAE 100R16.
Fitting series
46, 48
Applications
Many industrial and mobile applications, with typical usage seen on agricultural machines or in power steering circuits.
Advantages
Compact one wire braid construction with a two wire braid performance.
Benefits
Reduces stock as it can replace both one and two wire braid hoses in standard applications.
| Part number | Hose Inside Diameter DN | Hose Inside Diameter inch | Hose Inside Diameter Size | Hose Inside Diameter mm | Outside Diameter mm | Operating Pressure psi | Operating Pressure Mpa | Bend radius mm |
| 441-4 | 6 | 1/4 | -04 | 6.3 | 13.4 | 5000 | 35.0 | 50 |
| 441-6 | 10 | 3/8 | -06 | 9.5 | 17.4 | 4000 | 28.0 | 65 |
| 441-8 | 12 | 1/2 | -08 | 12.7 | 20.7 | 3500 | 24.5 | 90 |
| 441-10 | 16 | 5/8 | -10 | 15.9 | 23.8 | 2750 | 19.2 | 100 |
| 441-12 | 20 | 3/4 | -12 | 19.1 | 27.8 | 2250 | 15.7 | 120 |
| 441-16 | 25 | 1 | -16 | 25.4 | 35.8 | 2000 | 14.0 | 150 |
